Orbit
Orbit
Couldn't load pickup availability
About Group Buy
About Group Buy
- This is a group-buy purchase, so refunds cannot be issued once the group buy has ended.
- Production will start following the group-buy period.
- Please carefully consider your decision before joining this group buy.
Shipping Policy
Shipping Policy
SHIPPING POLICY
Machina ships internationally.
In order to streamline the shipping process and minimize the overall turnaround time, we have set up a warehouse in China and a dedicated QC team working closely with our manufacturer.
All orders will be shipped via air transport directly from the factory after QC.
- Imports, duties, and taxes are all the responsibility of the customer.
- Refusal to pay duties will result in your order being cancelled minus the TOTAL shipping cost (inclusive of return) and any other applicable fees (for example credit card fees).
- For customers in the EU and UK, please note that there is a minimum order value of $180.00 USD.
- Unfortunately, Machina is currently unable to ship to Russia and Ukraine.
- Please be aware that Machina does not provide shipping services to PO Boxes or Parcel lockers.
- Kindly ensure that you provide all the necessary details, including the apartment/suite/building number, and if required, the company name.
SERVICE USED
- Worldwide: DHL
QC Standard - Please Read Before Purchase
QC Standard - Please Read Before Purchase
[QC Standard]
1. Product Appearance: There should be no scratches, bumps, or defects larger than 3mm on any of the six outer surfaces (top, bottom, left, right, front, and back) of the assembled kit.
2. Functionality: The keyboard should be fully functional without any usage issues.
[Defects that may occur but are within acceptable limits]
1. Non-impacting Use Defects: These include minor issues such as anode hanger hanging point, slight CNC cutting lines, and internal scratches that do not affect the functionality of the product.
2. Appearance defects in tool parts, such as a bruised screwdriver.
3. Products that have been assembled are not eligible for exchange or return.
https://machina.mx/products/add-on-orbit
*Please note that all the the kits will come with two sets of grey and black fiction feet.
**Please note that all the the kits will come with a set of customised force break mod kit.
SPEC

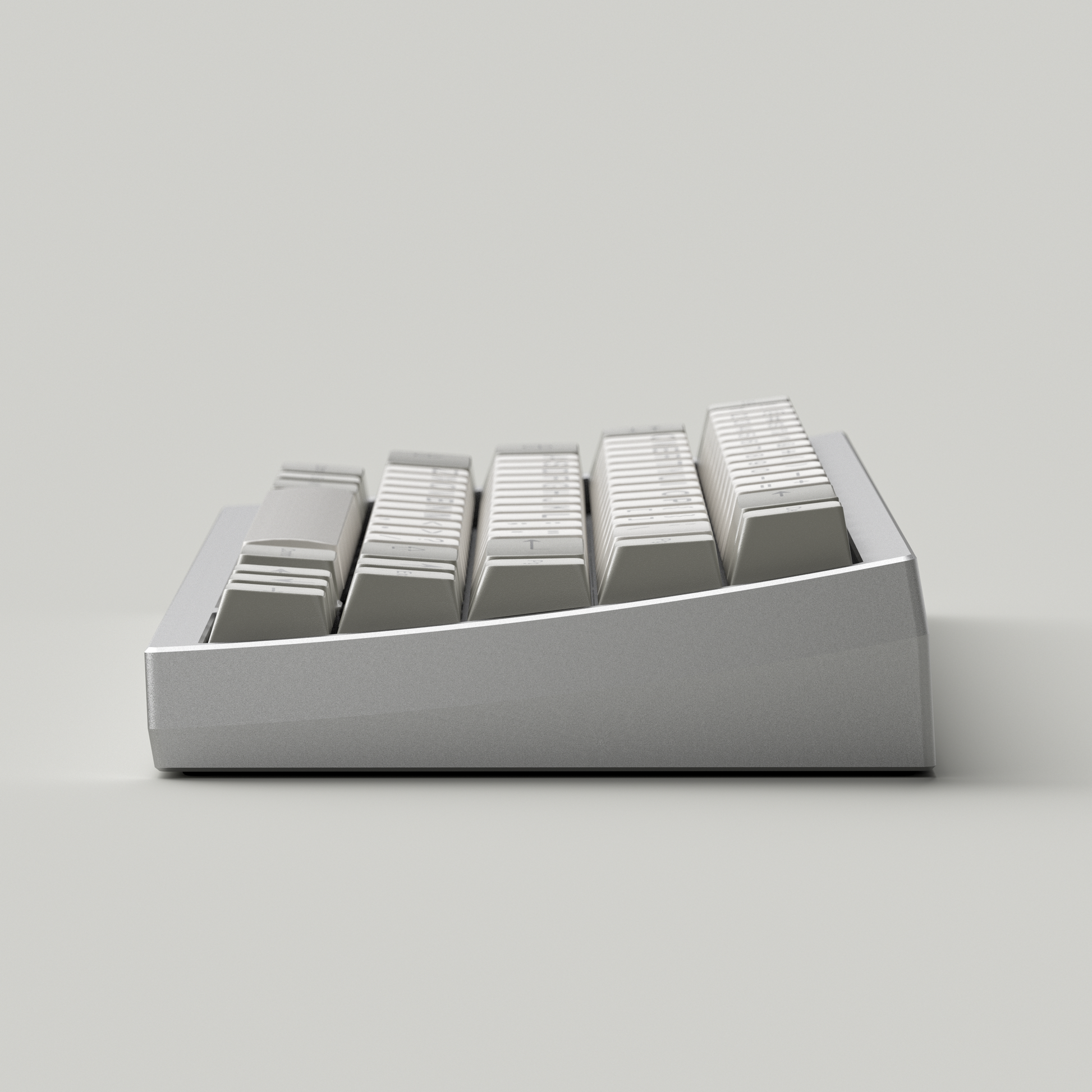

- Typing angle 7.0°
- Front height: 17mm
- Weight : 1.5kg with Aluminium Bottom Case
2.5kg with Brass/Copper Bottom Case
- Mounting style: Silicon pin/ Tadpole ( 70A as default, 3 hardness options)
- Screwless exterior design (detachable silicon feet)
- PCB: Inhouse design with USB-C daughterboard - configurable with QMK/VIA, hotswap, and solder option available.
- A matching carrying case included

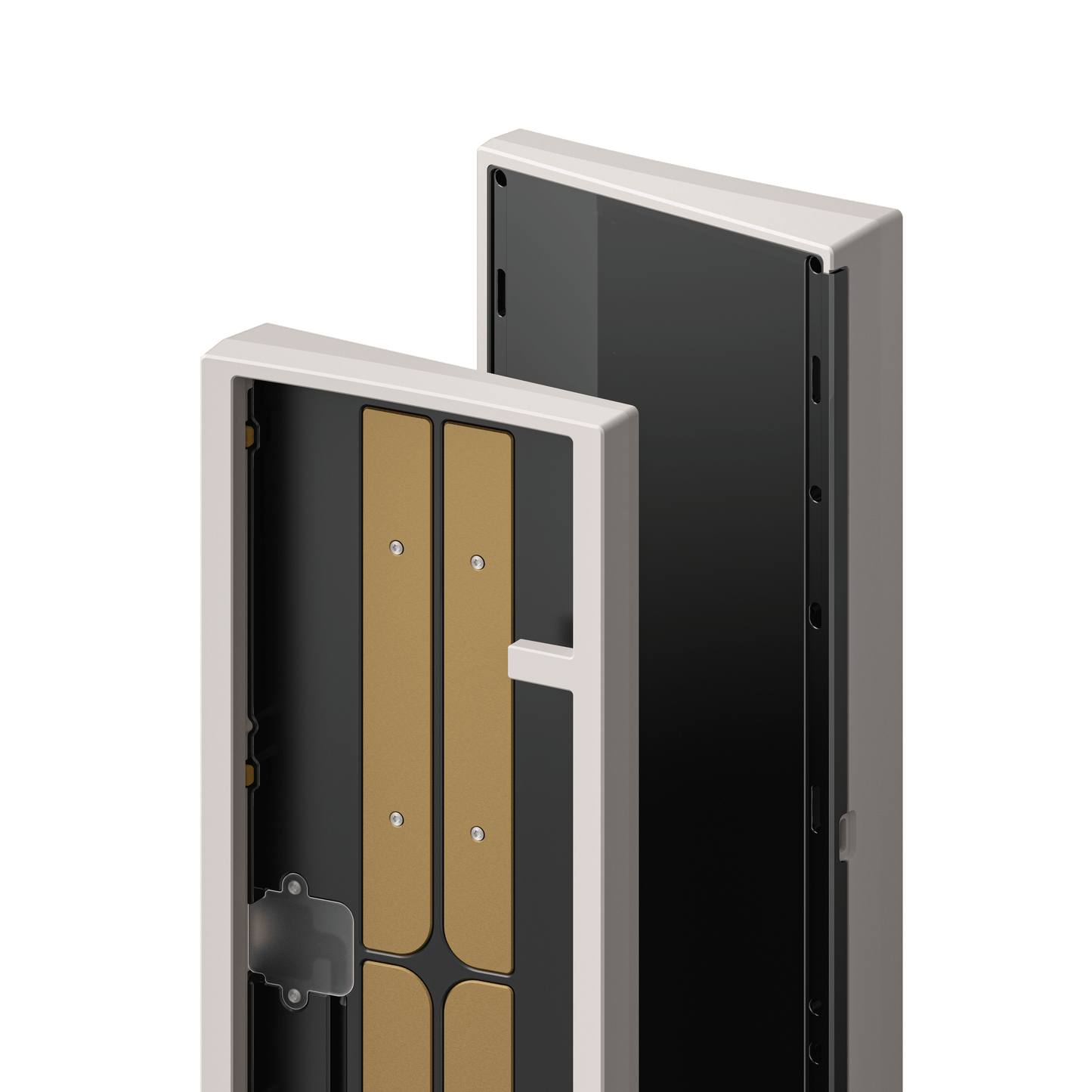

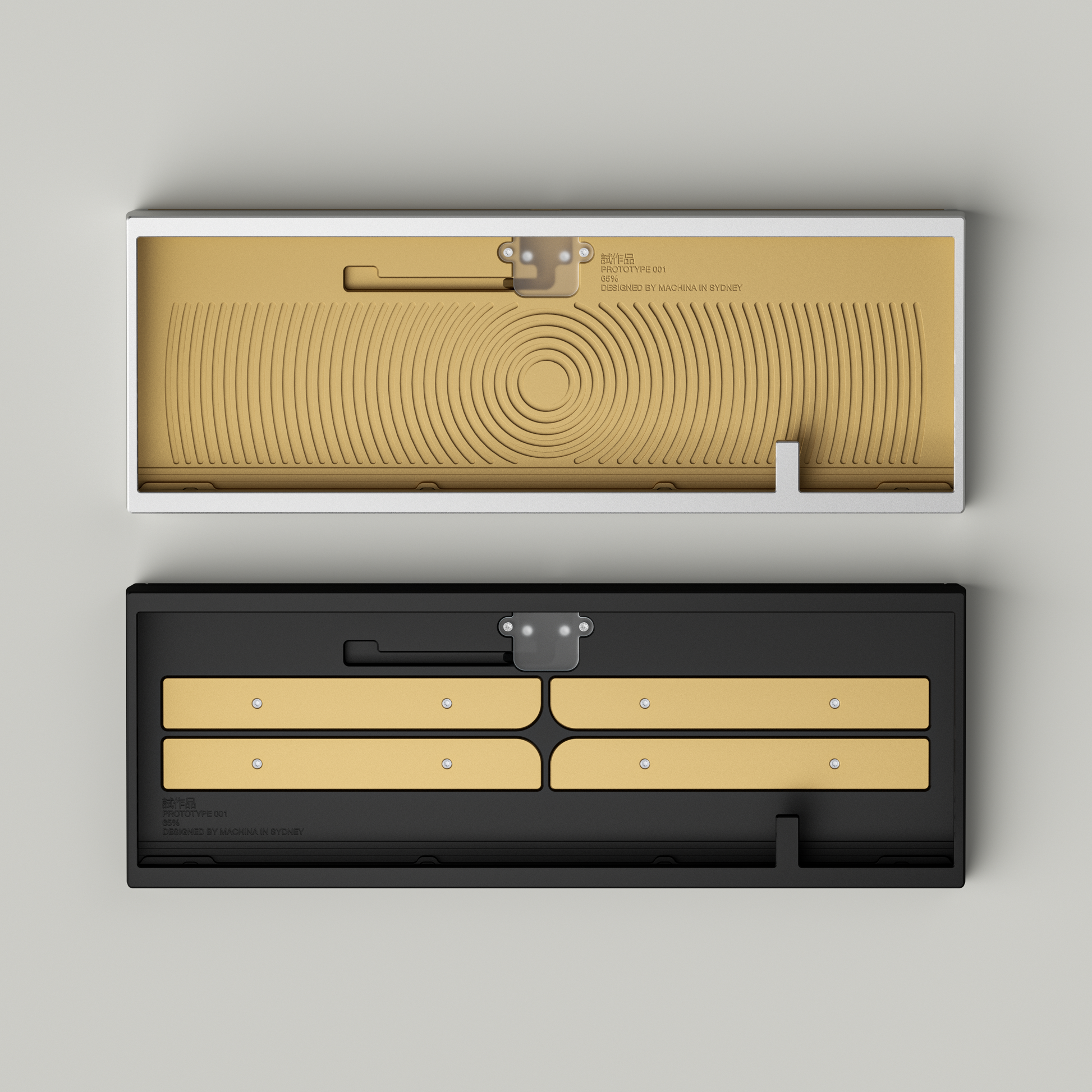

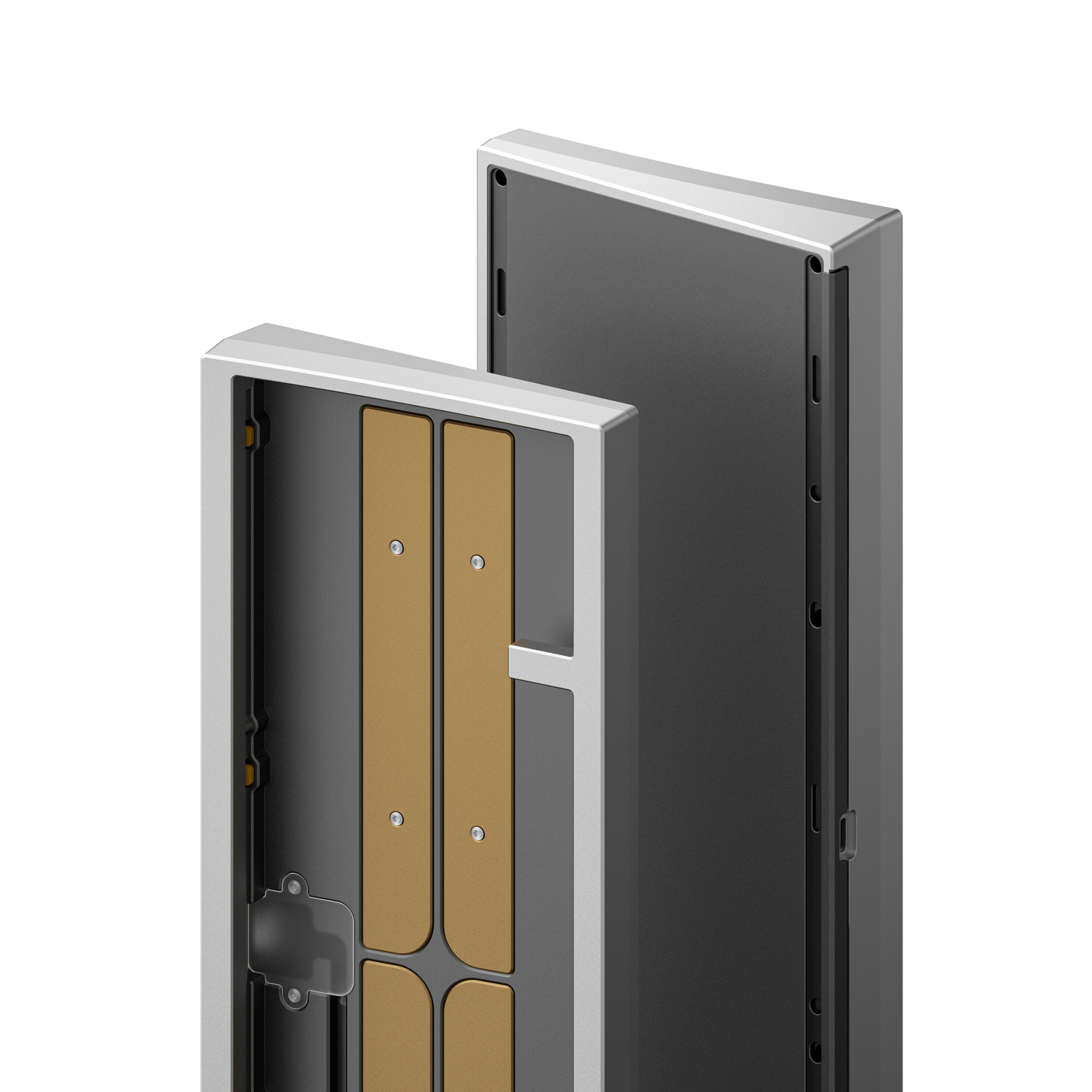

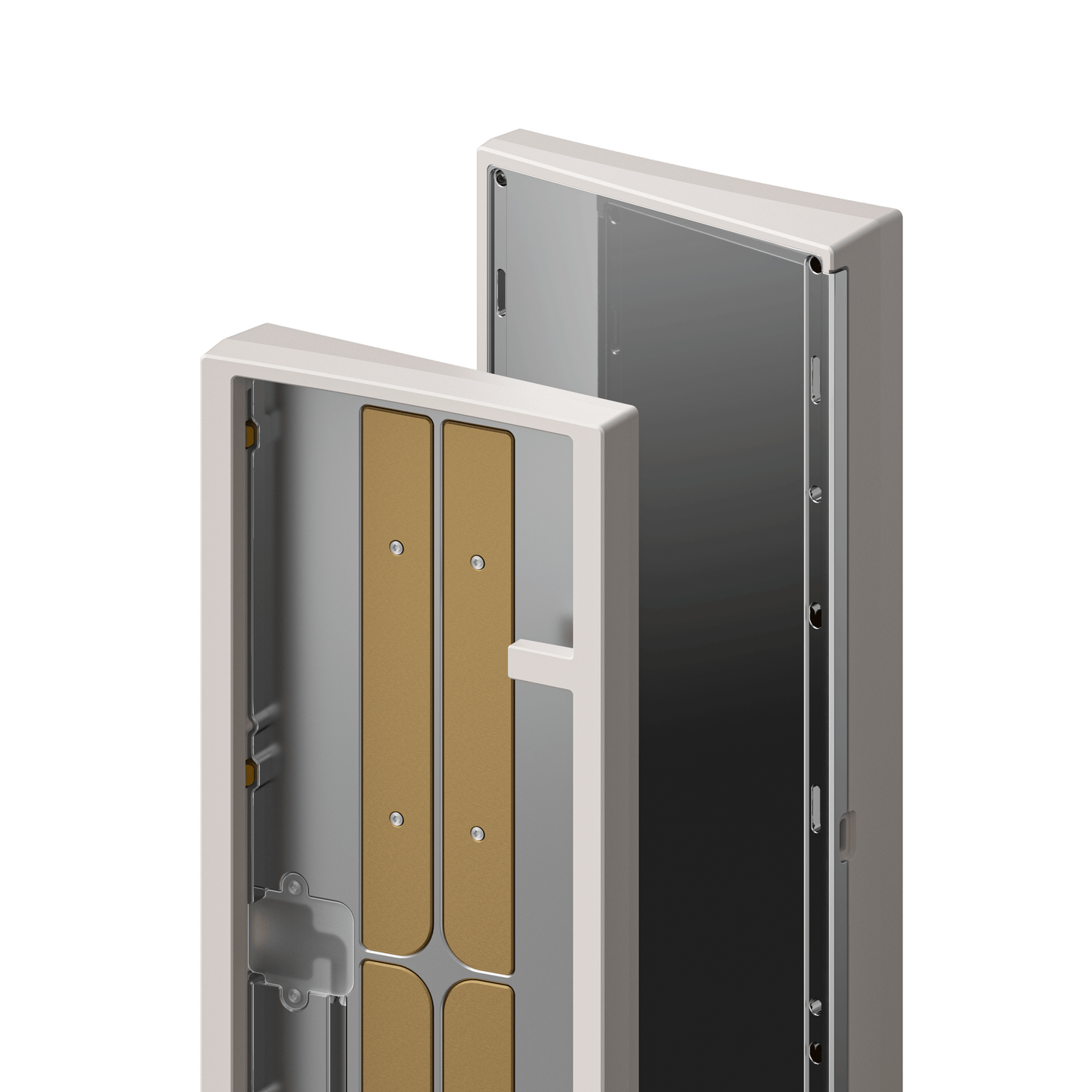

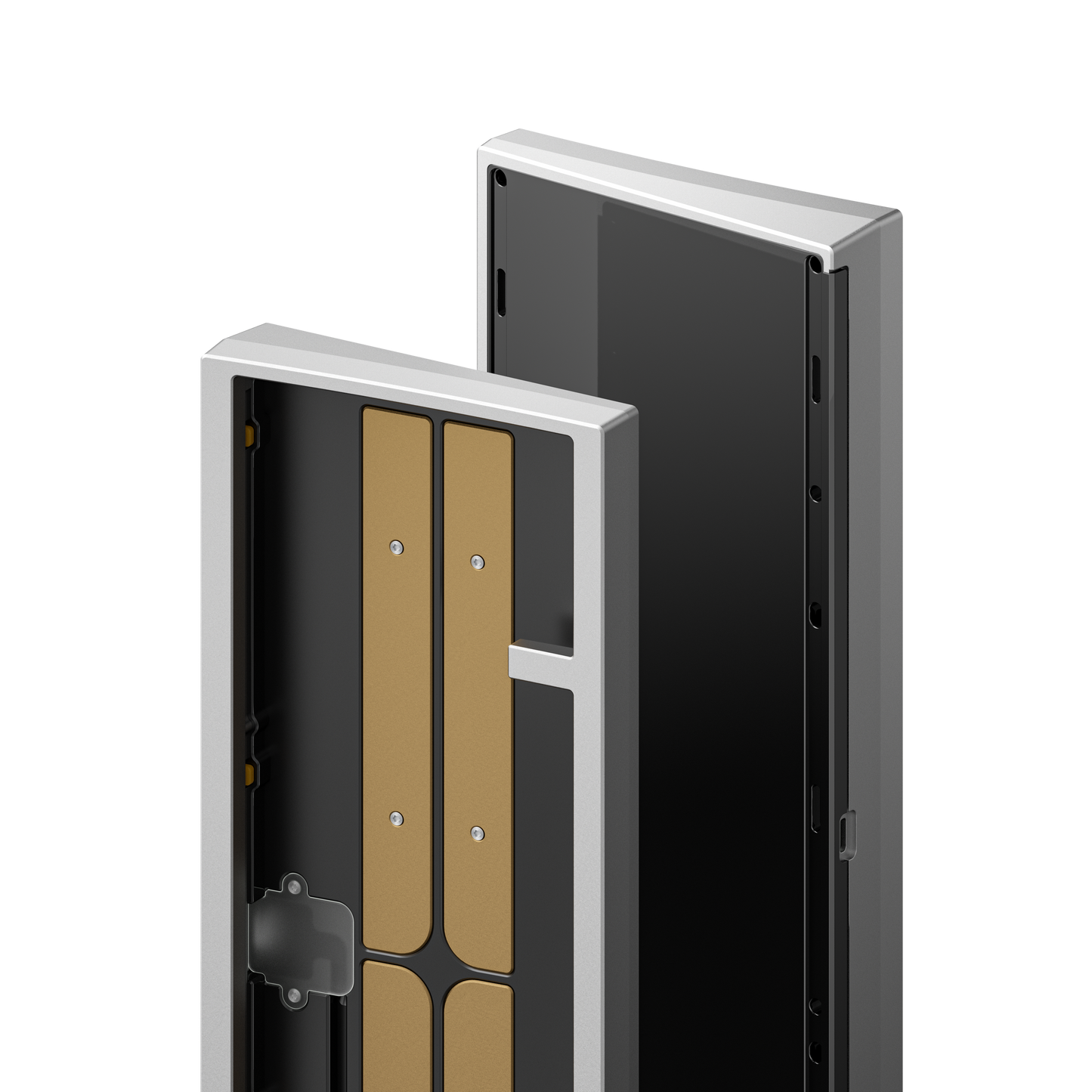

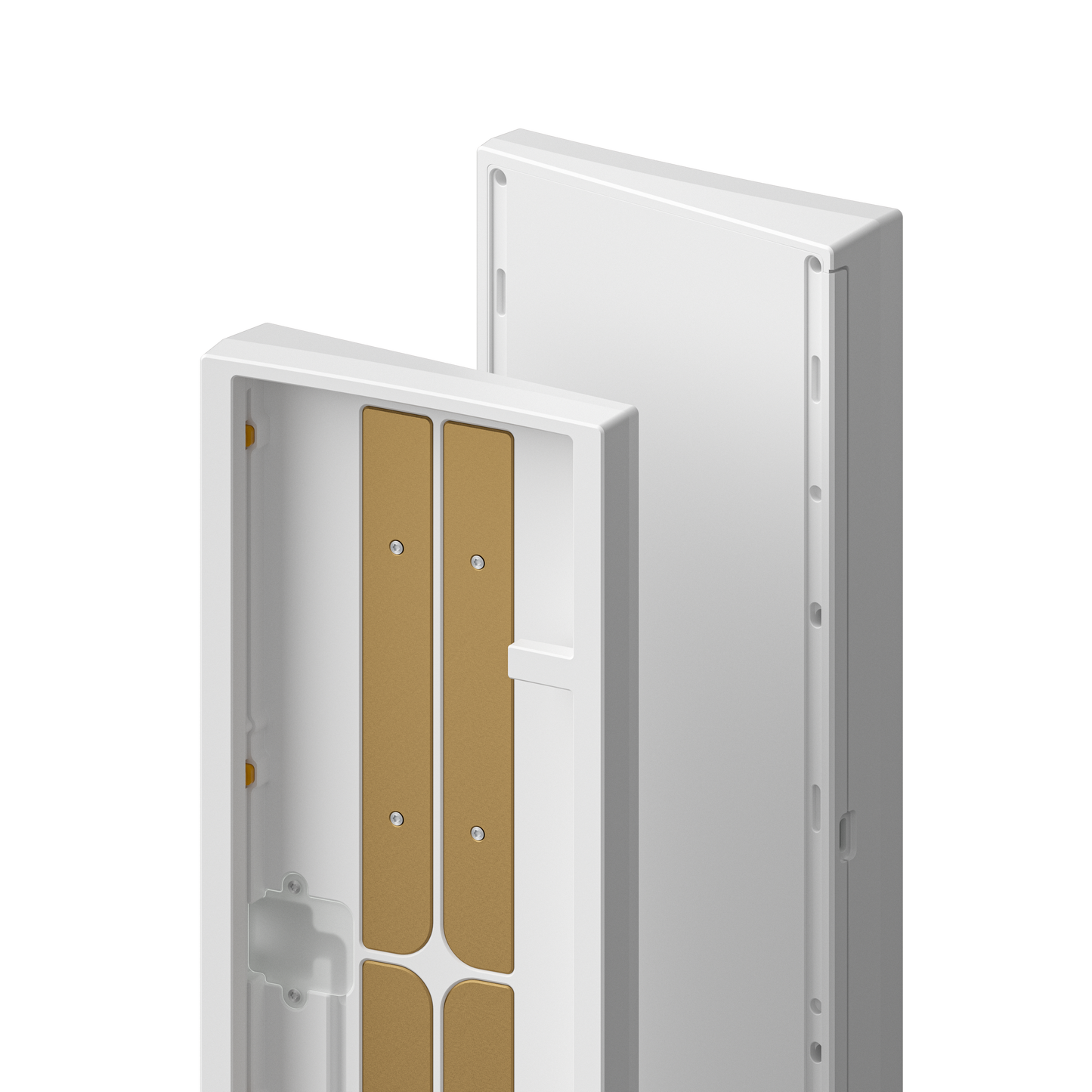

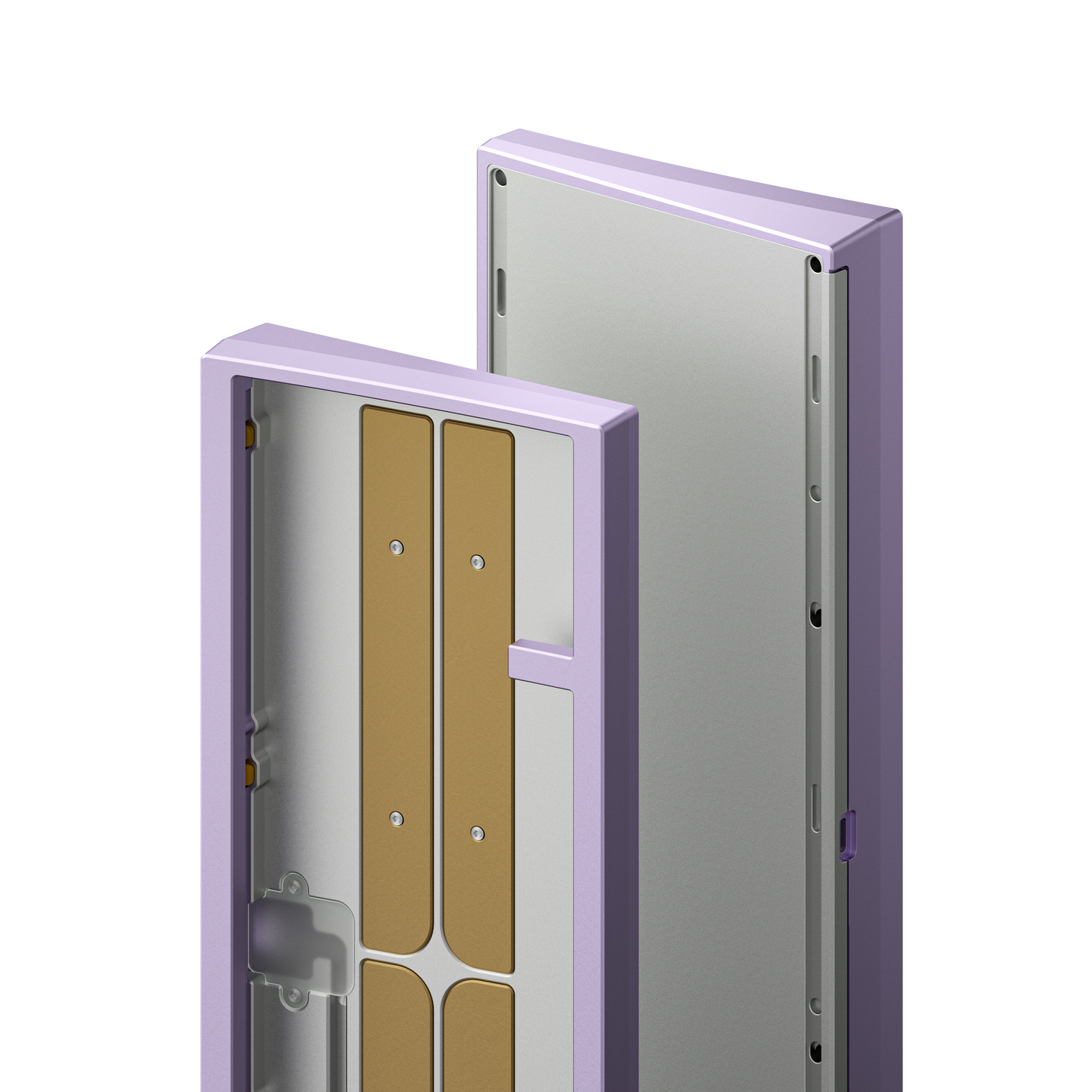

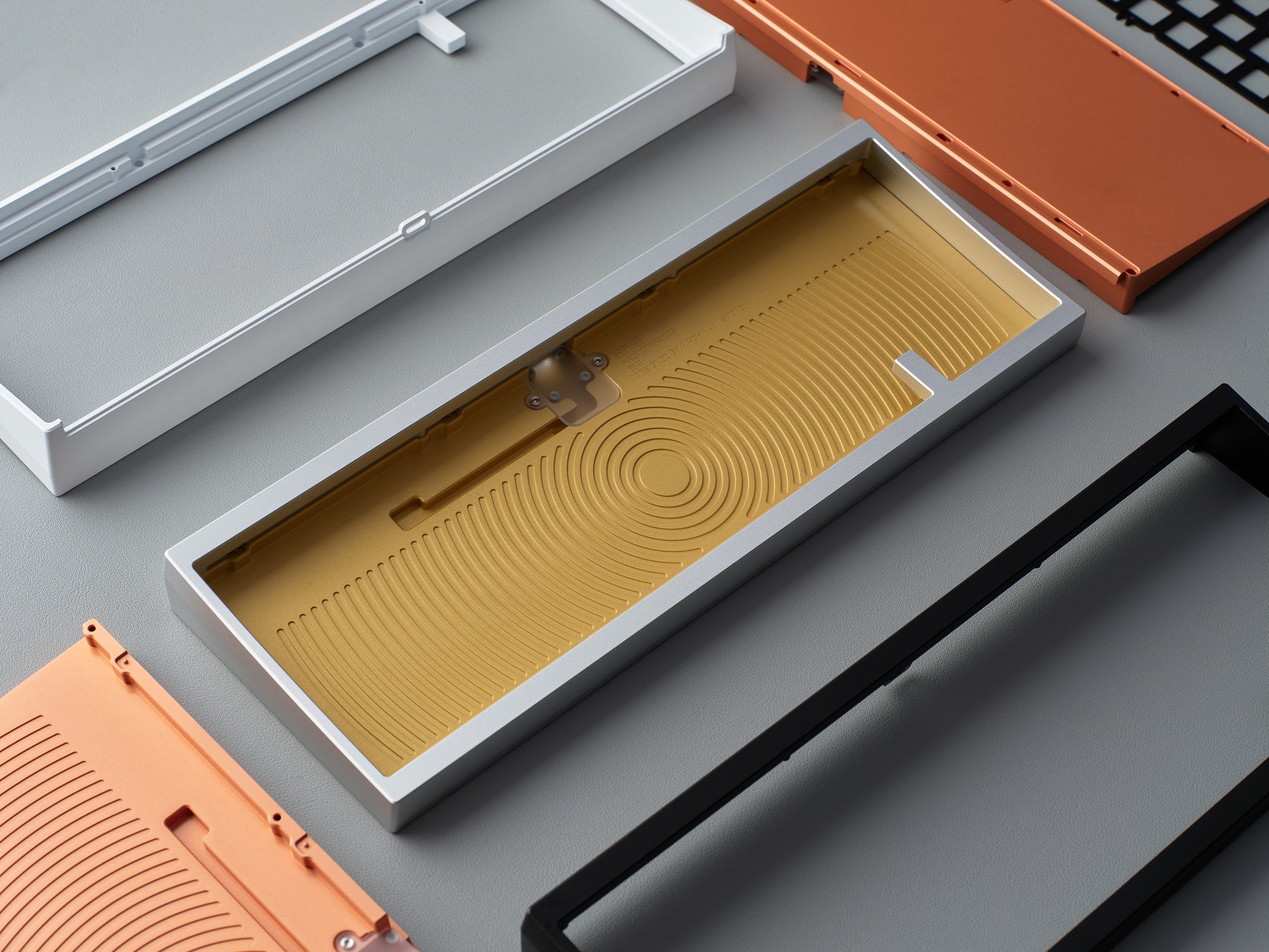

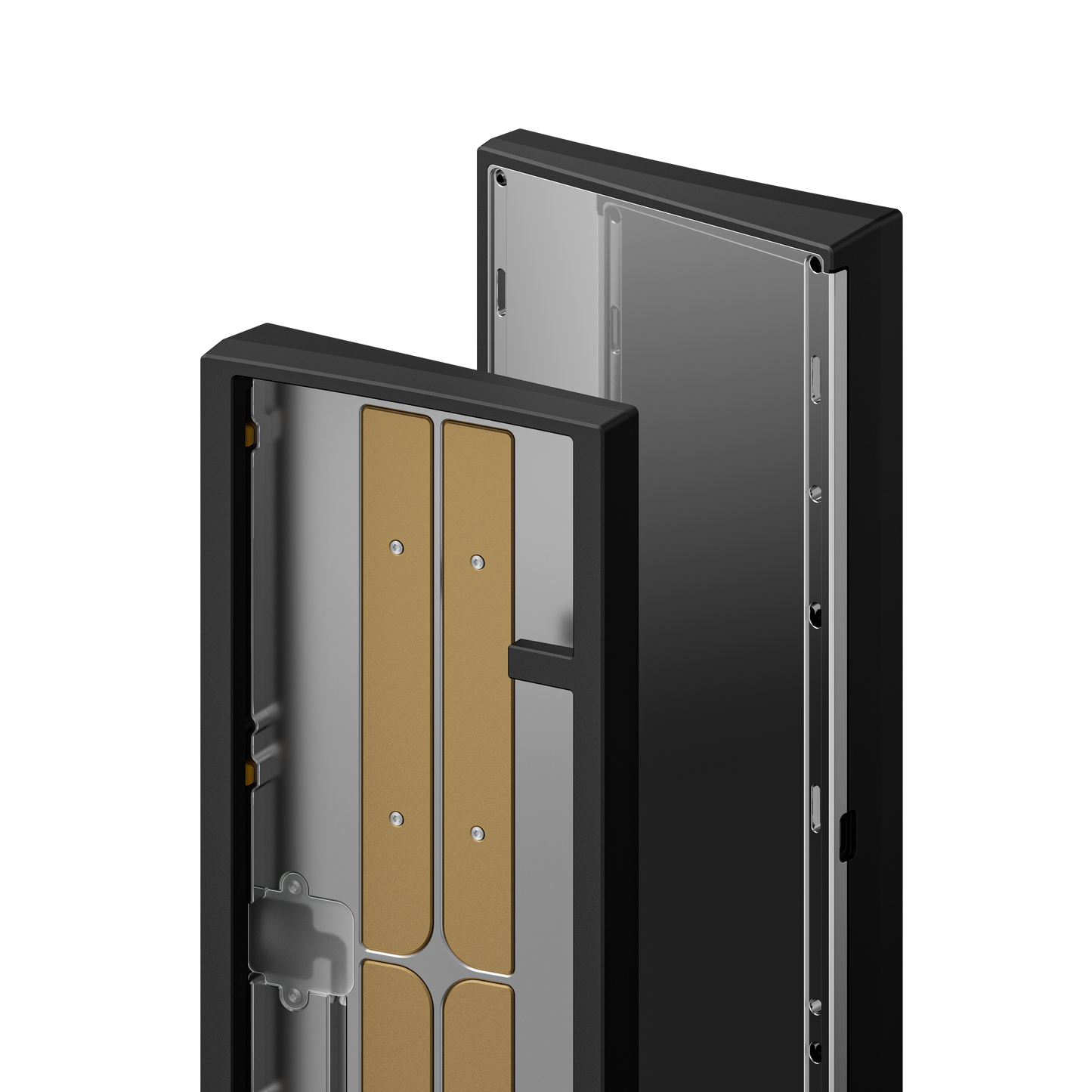

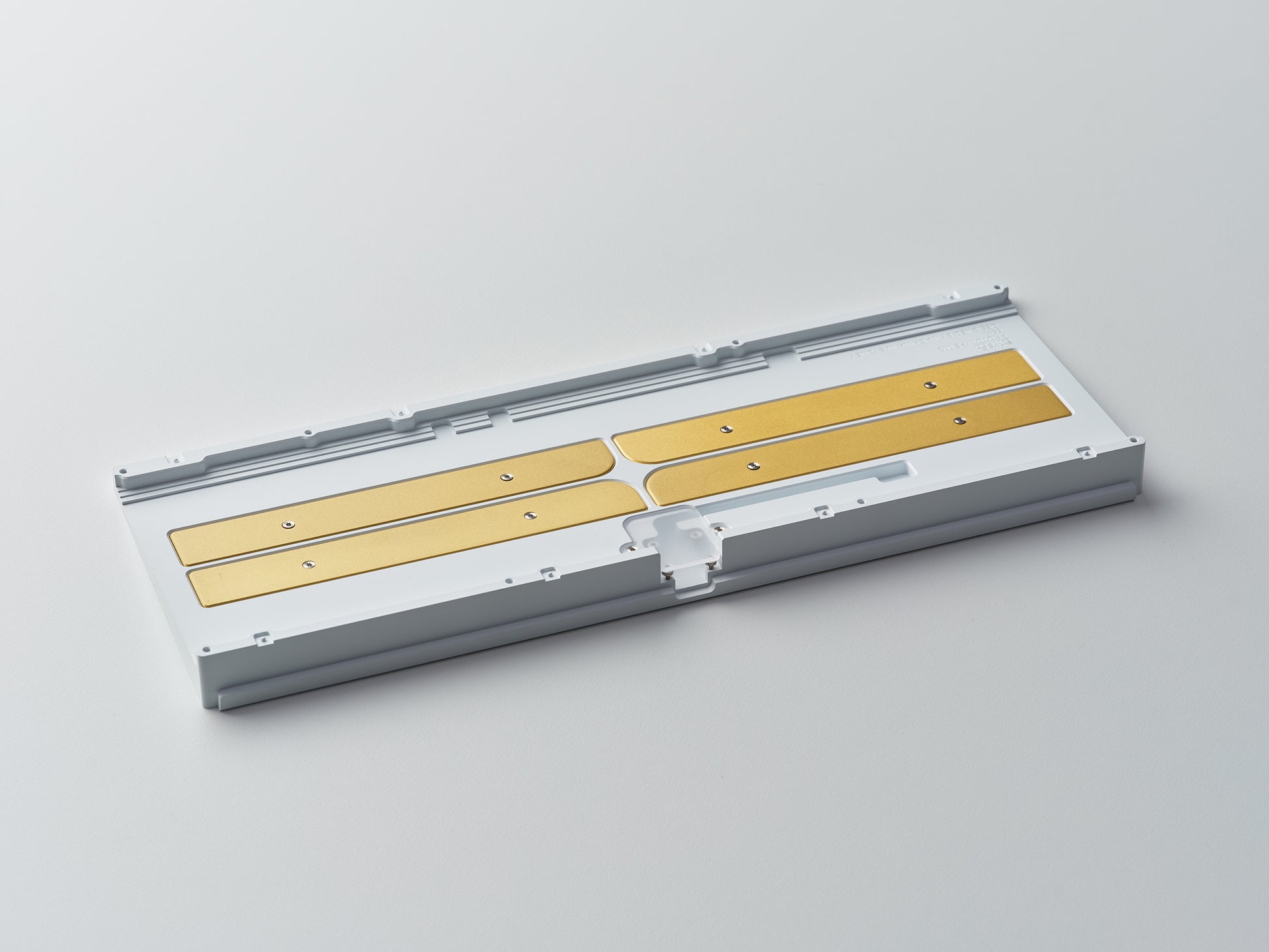

Multiple bottom case designs:
- Aluminium Top Case

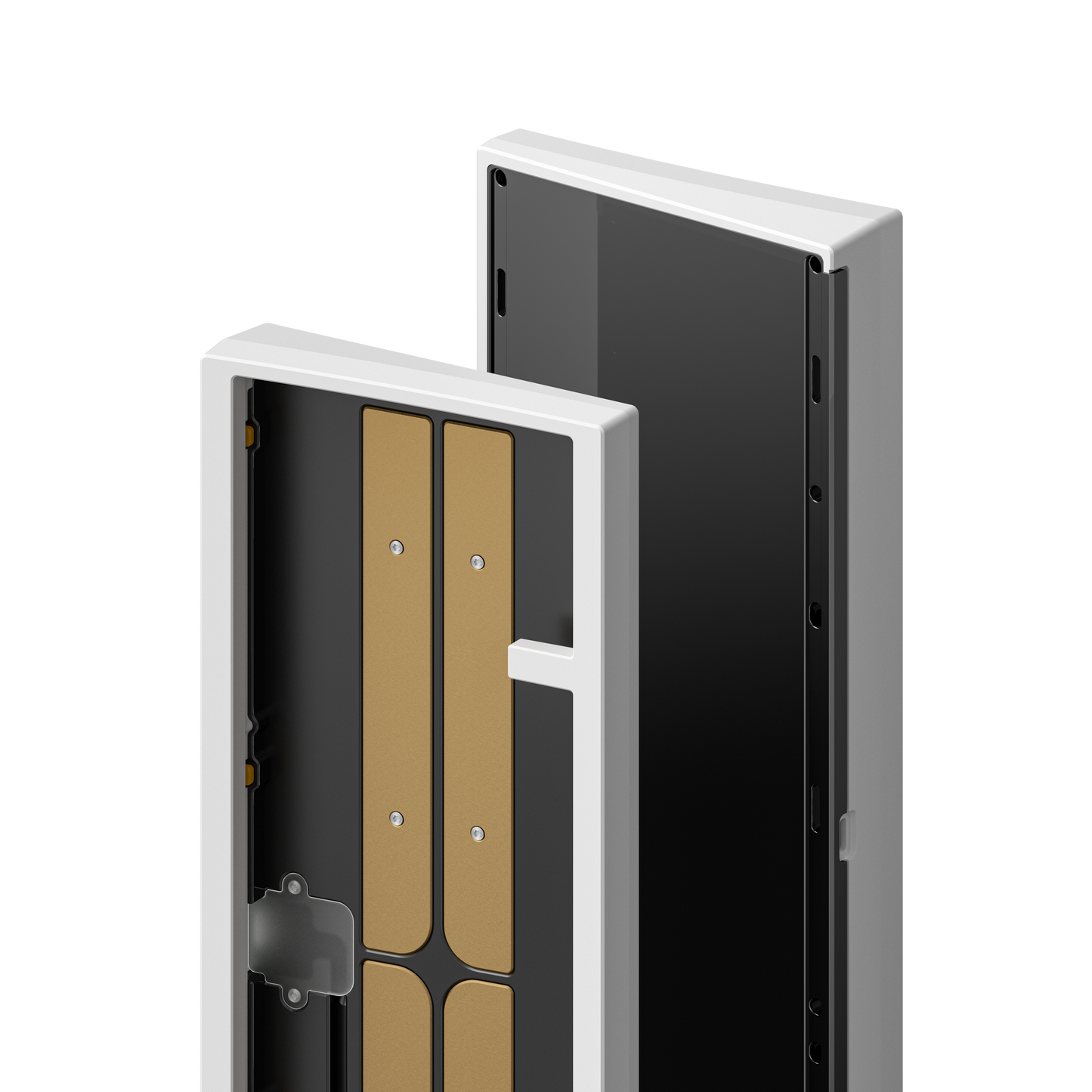

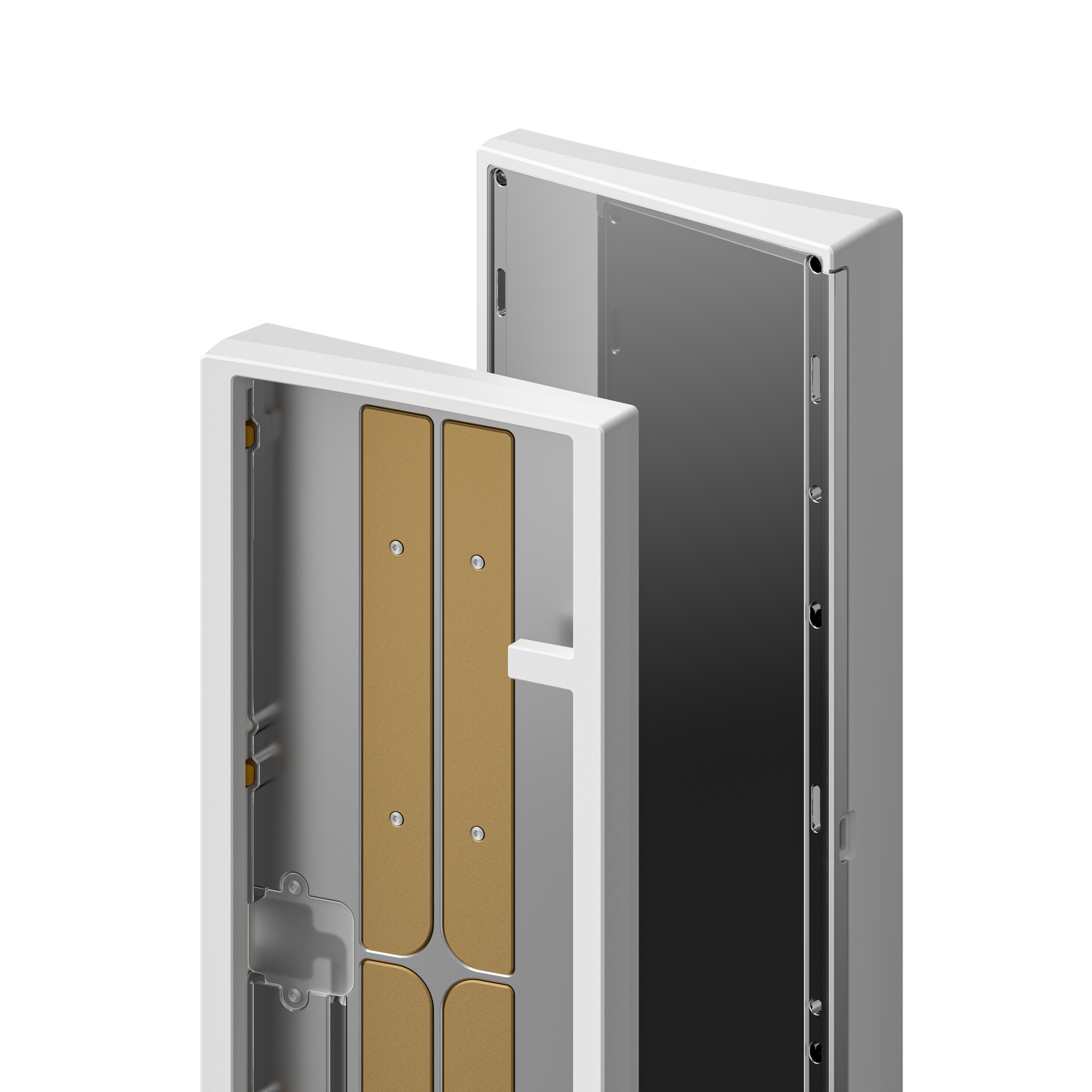

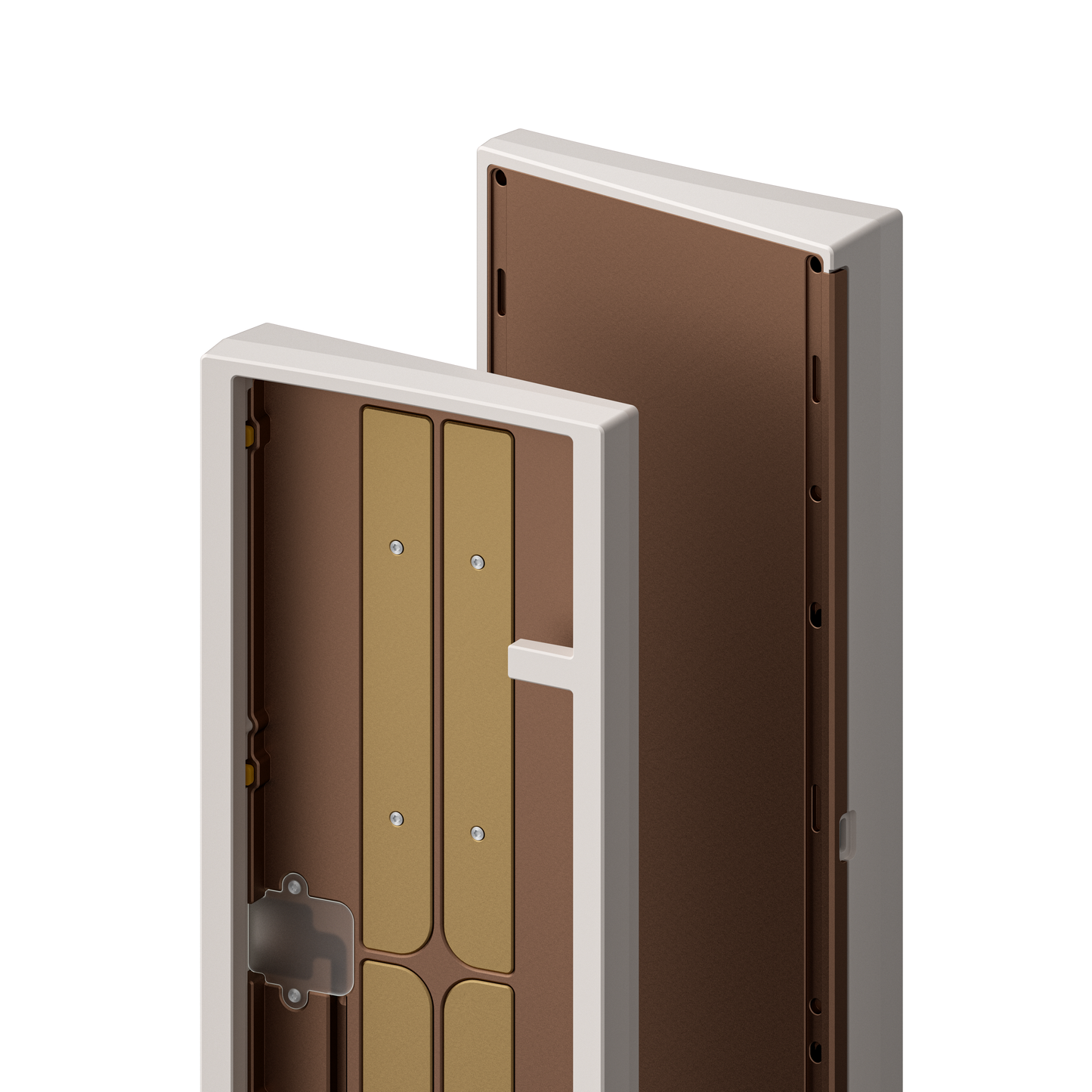

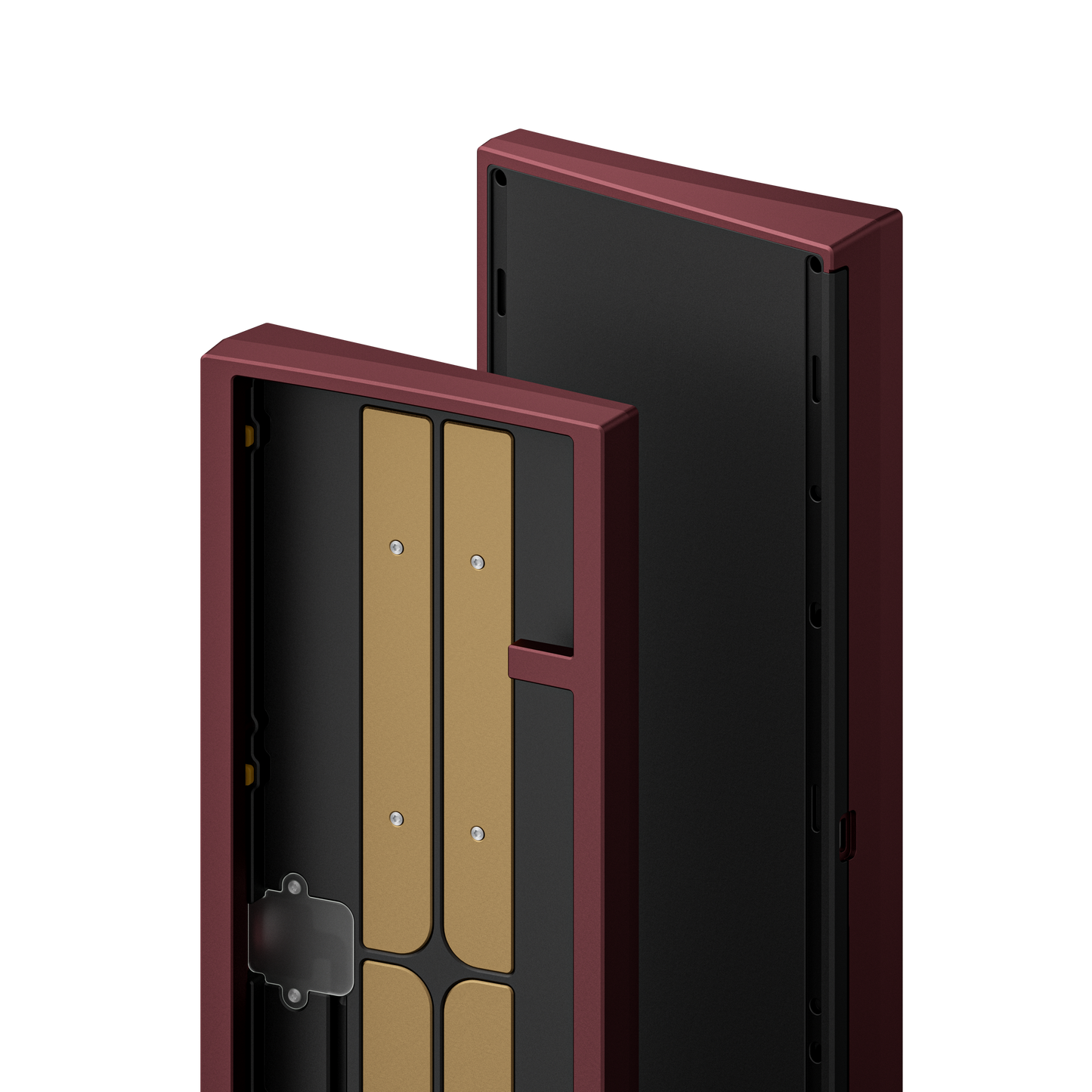

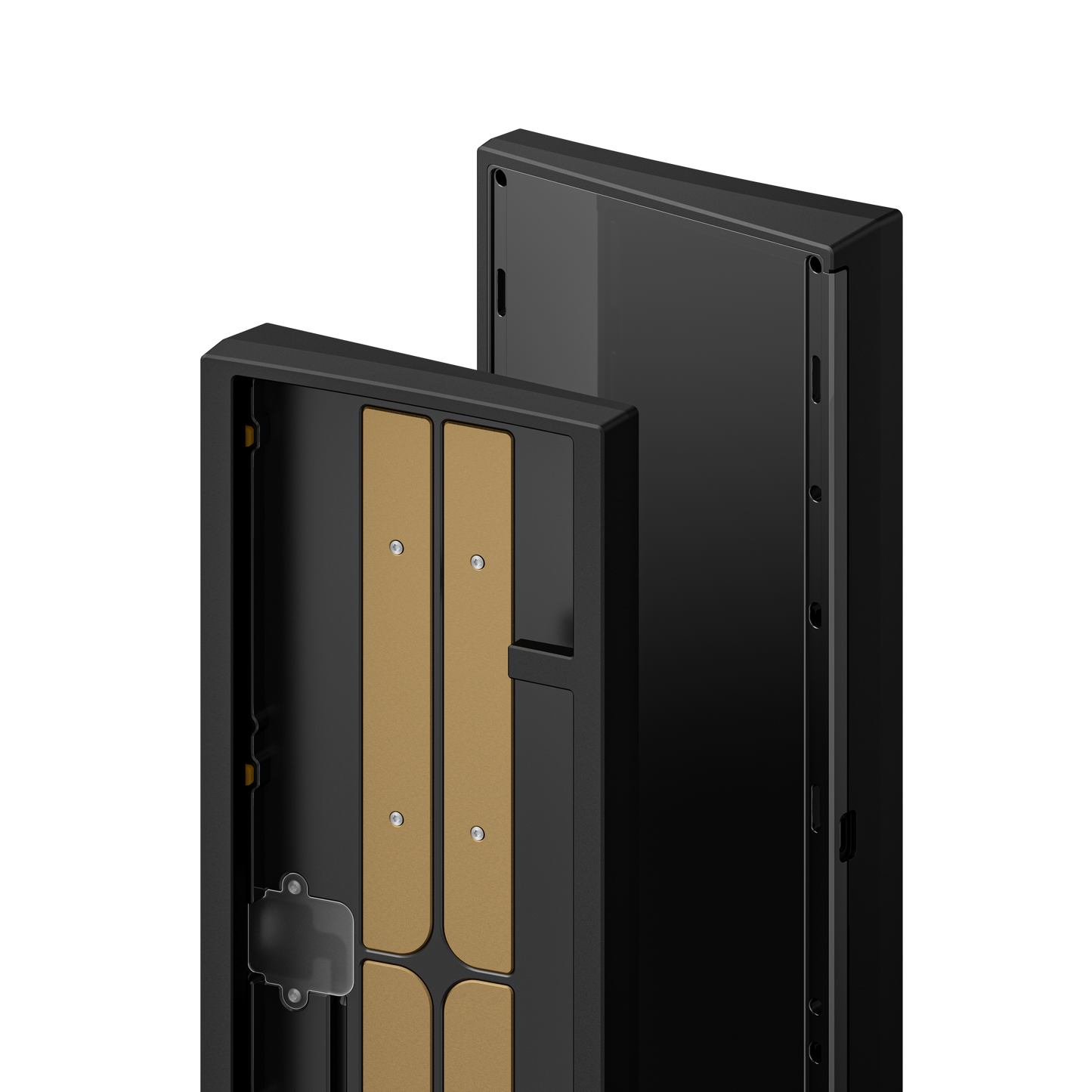

- Anodised/ E-coated Aluminium Bottom Case with 4 internal clear E-coated brass weights

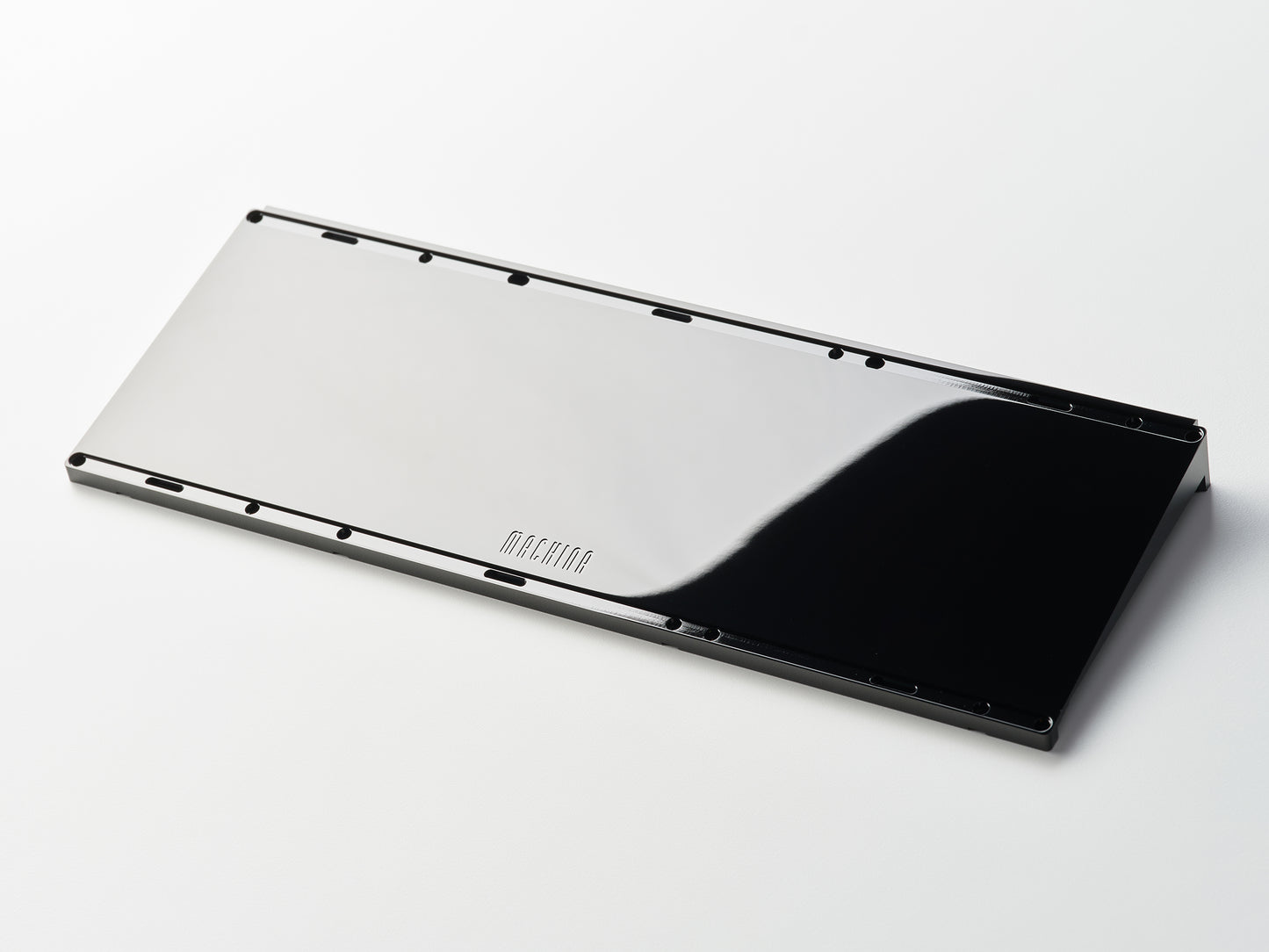

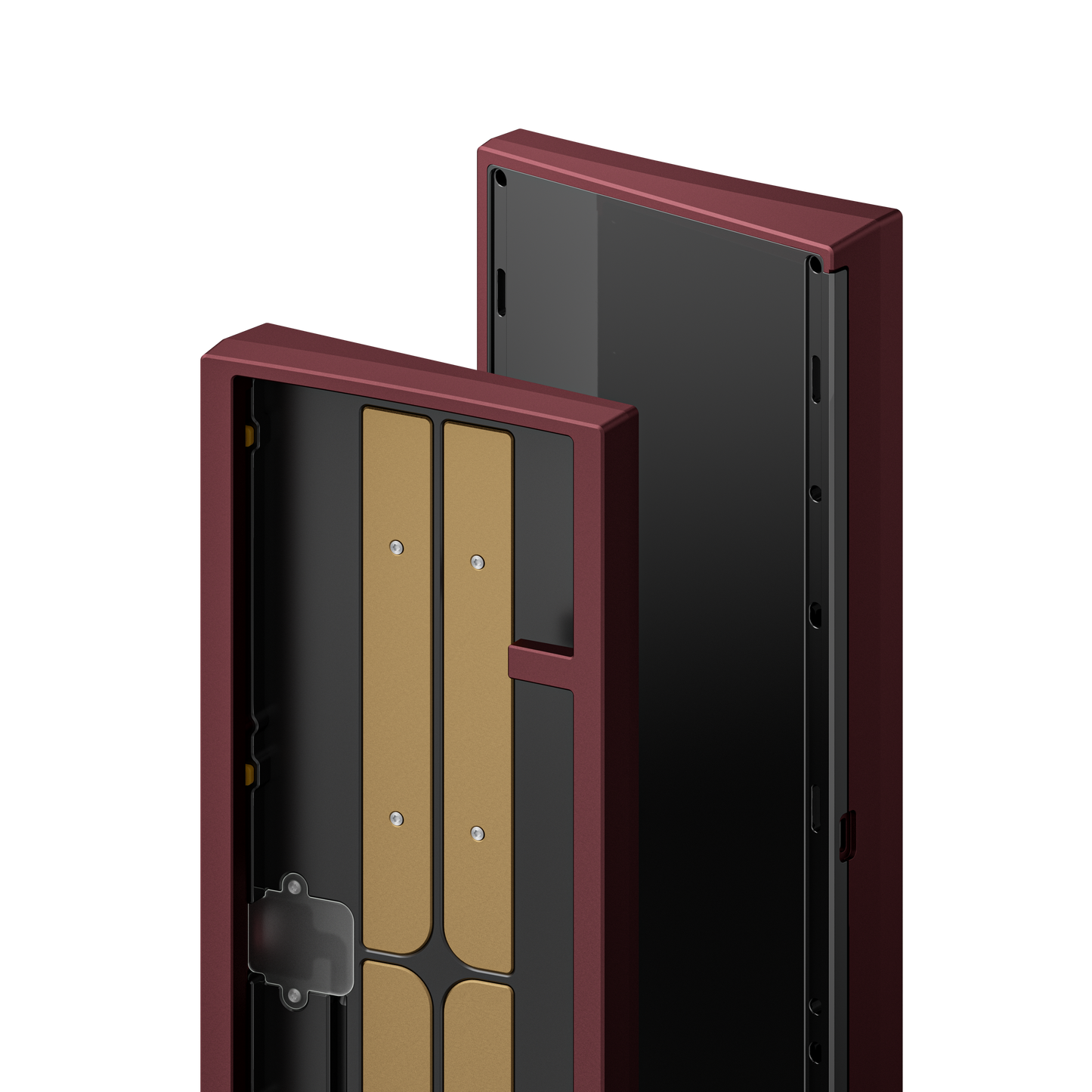

- Full PVD Aluminium Bottom Case with 4 internal clear E-coated brass weights

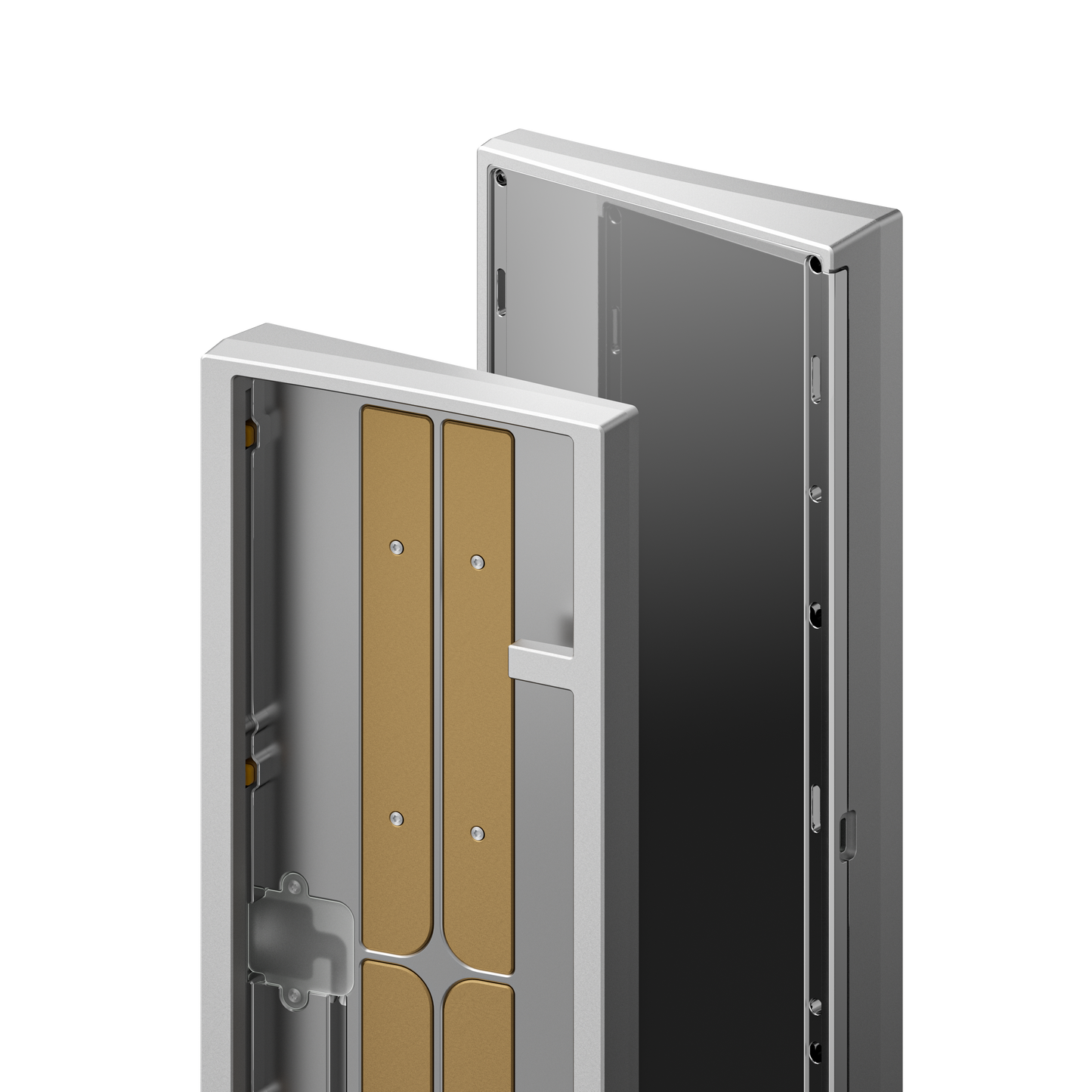

- Raw Finish Aluminium Bottom Case with 4 internal clear E-coated brass weights

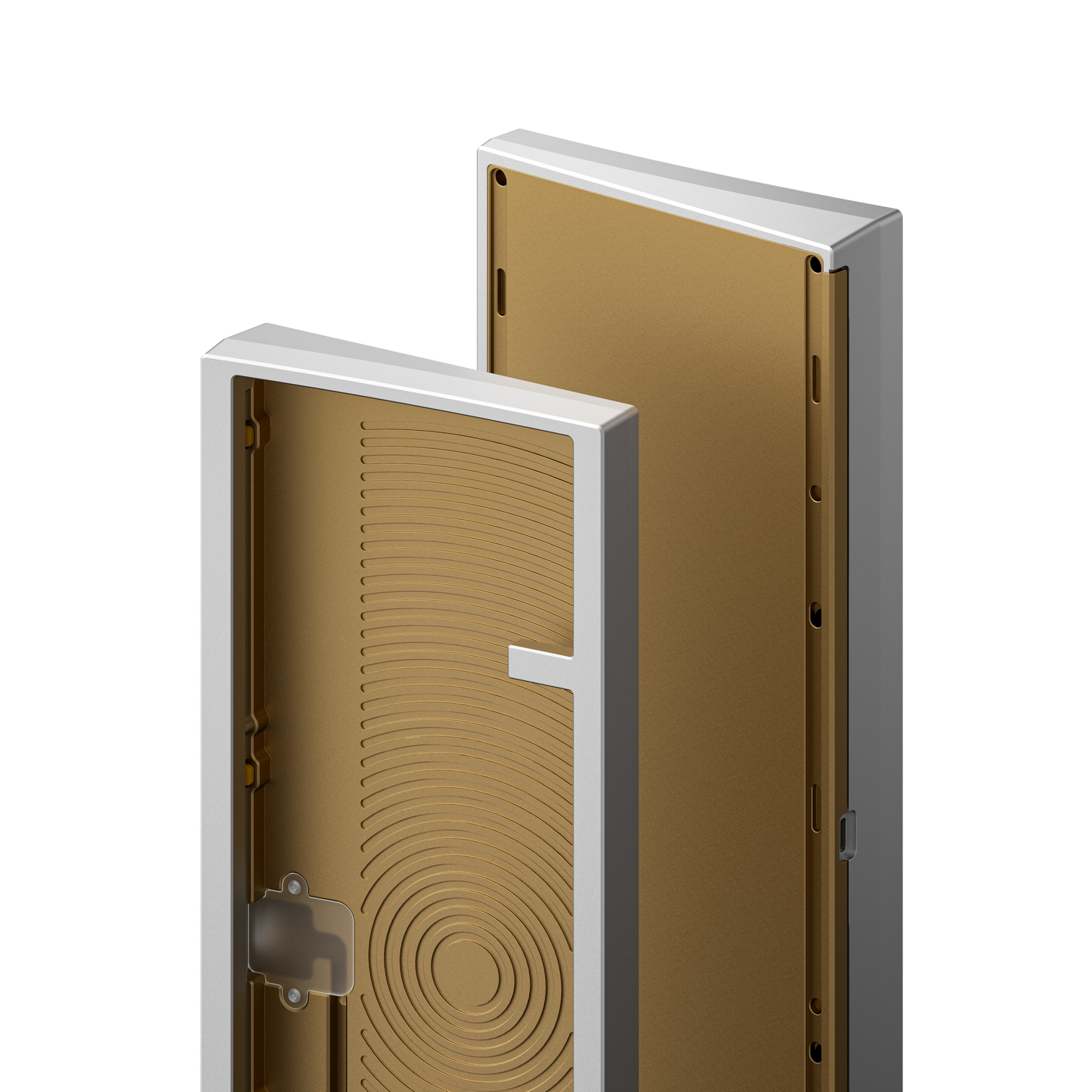

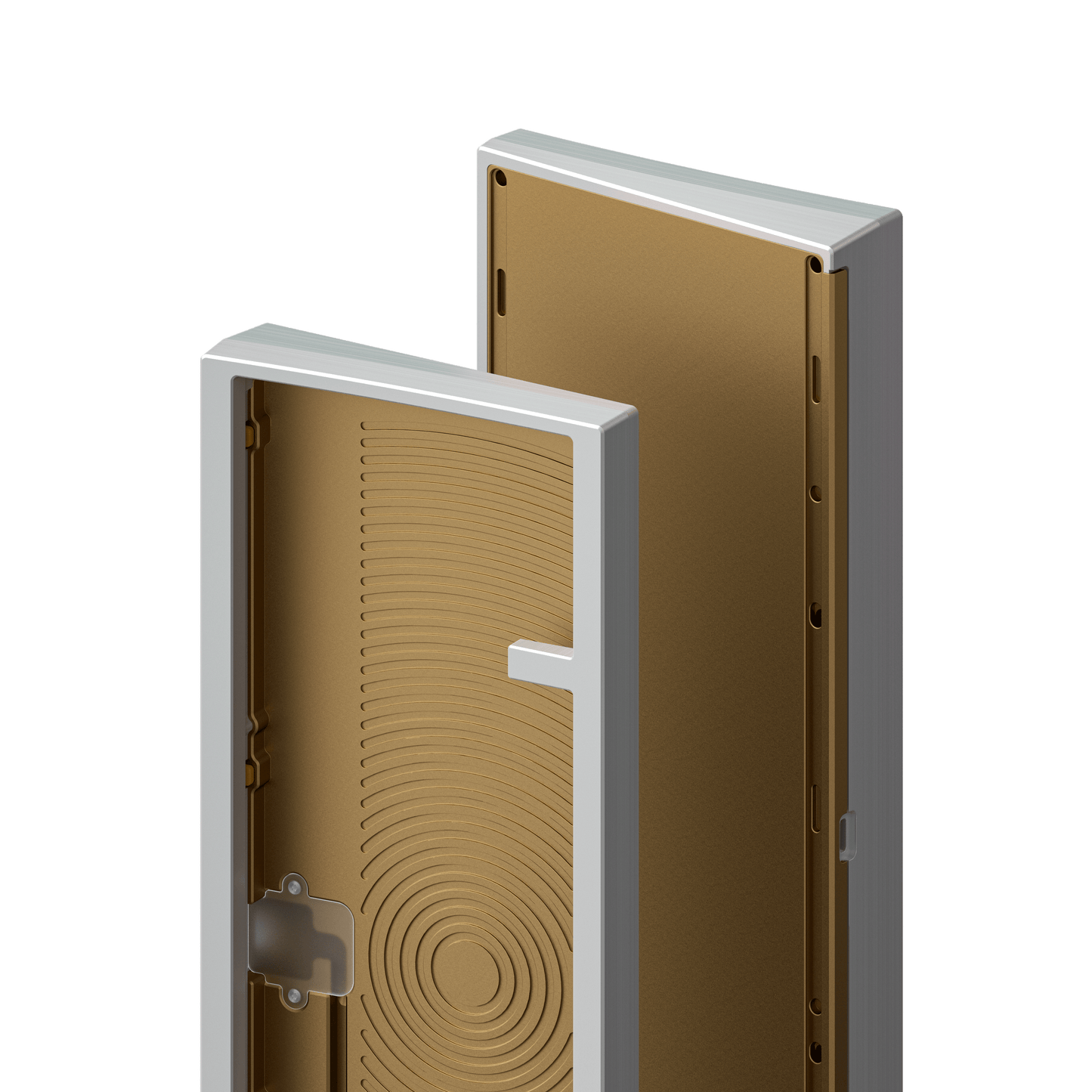

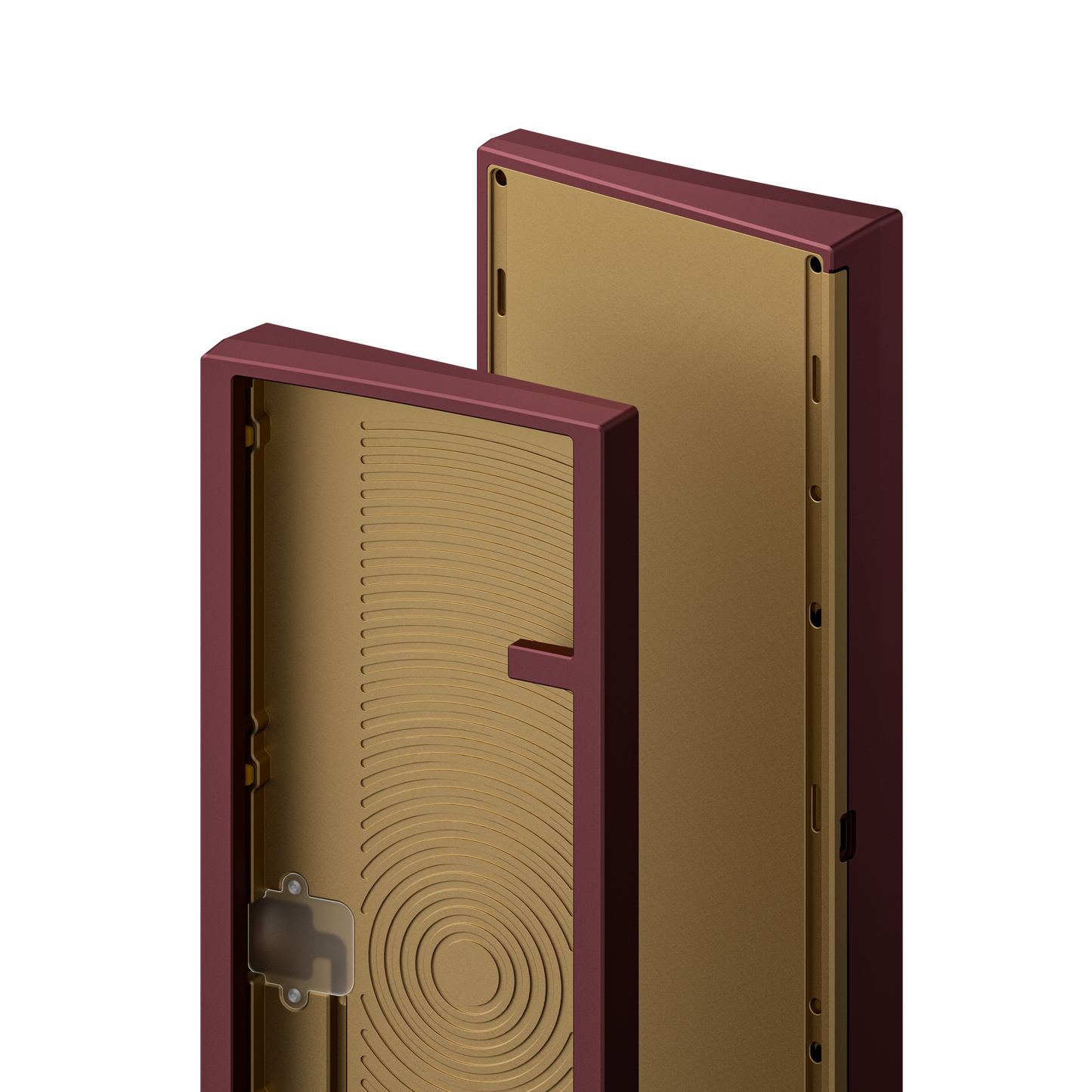

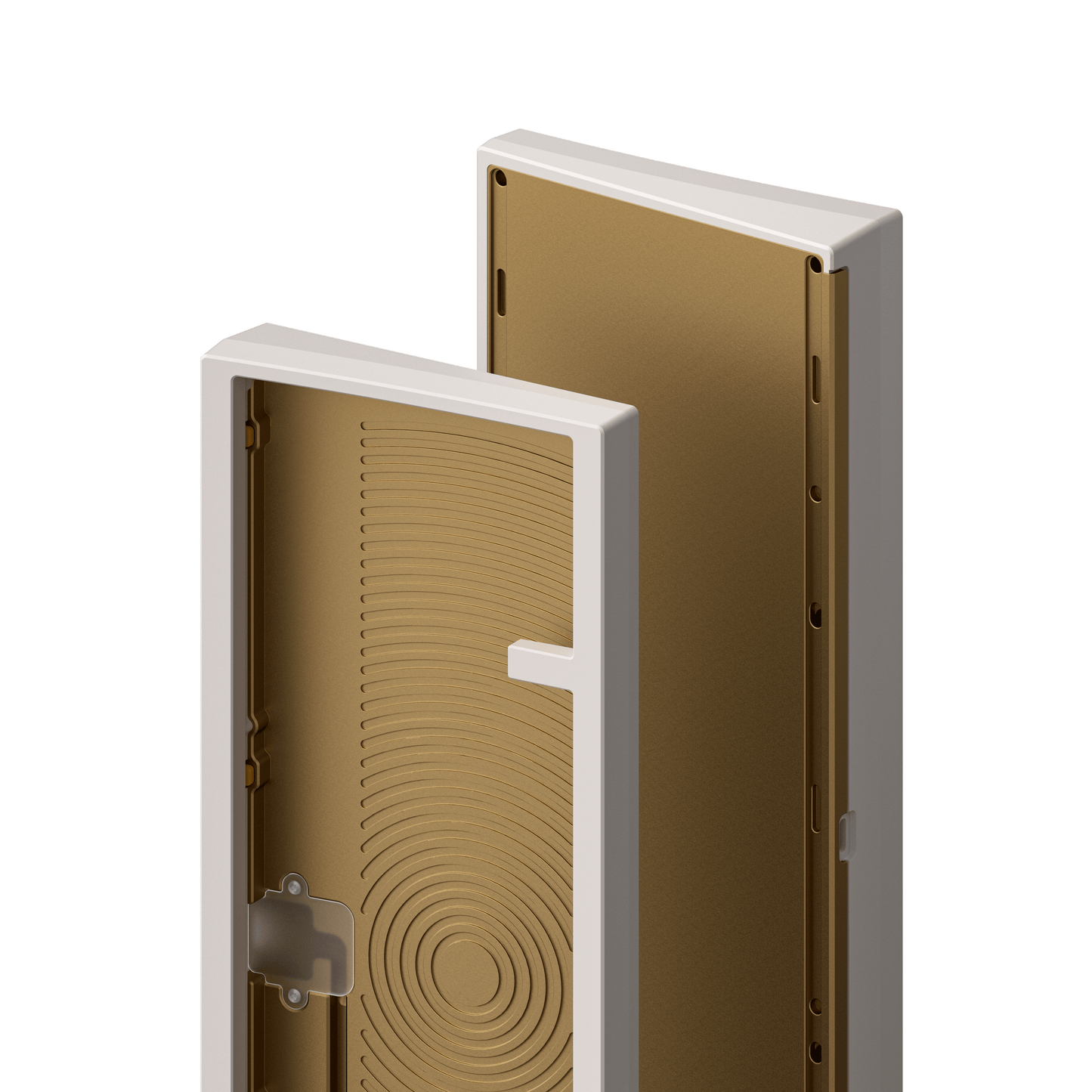

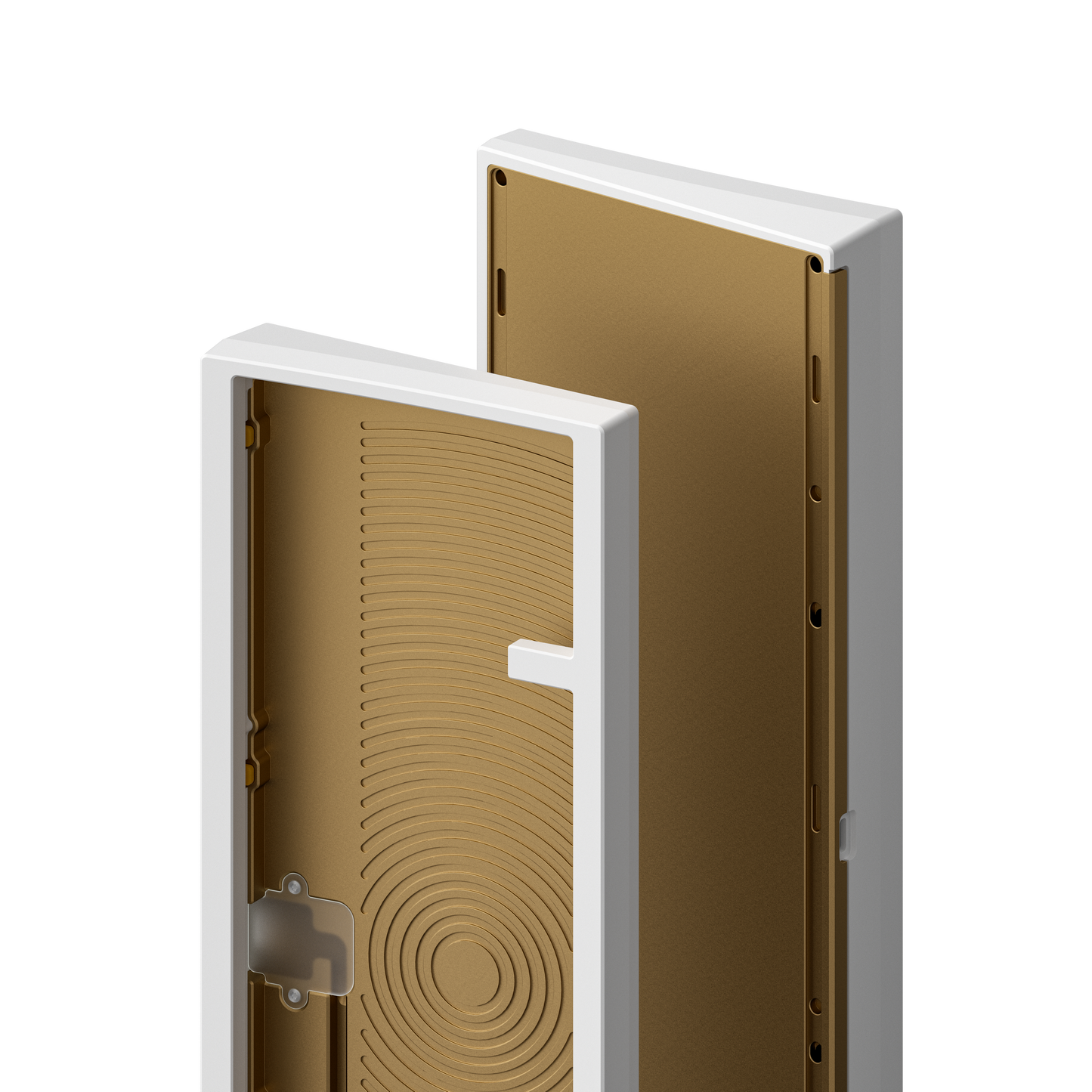

- Full Brass Bottom Case with clear E-coat finish

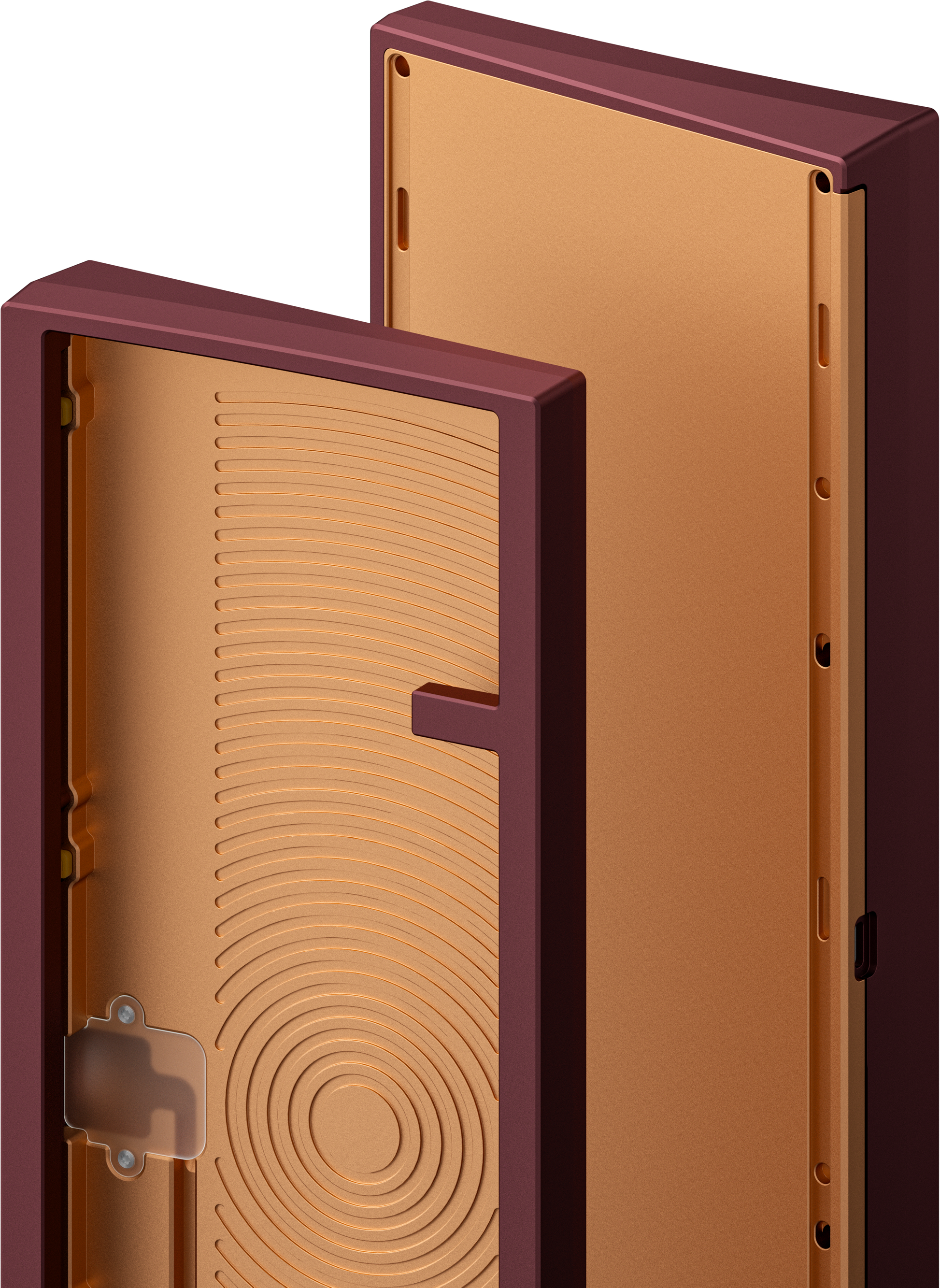

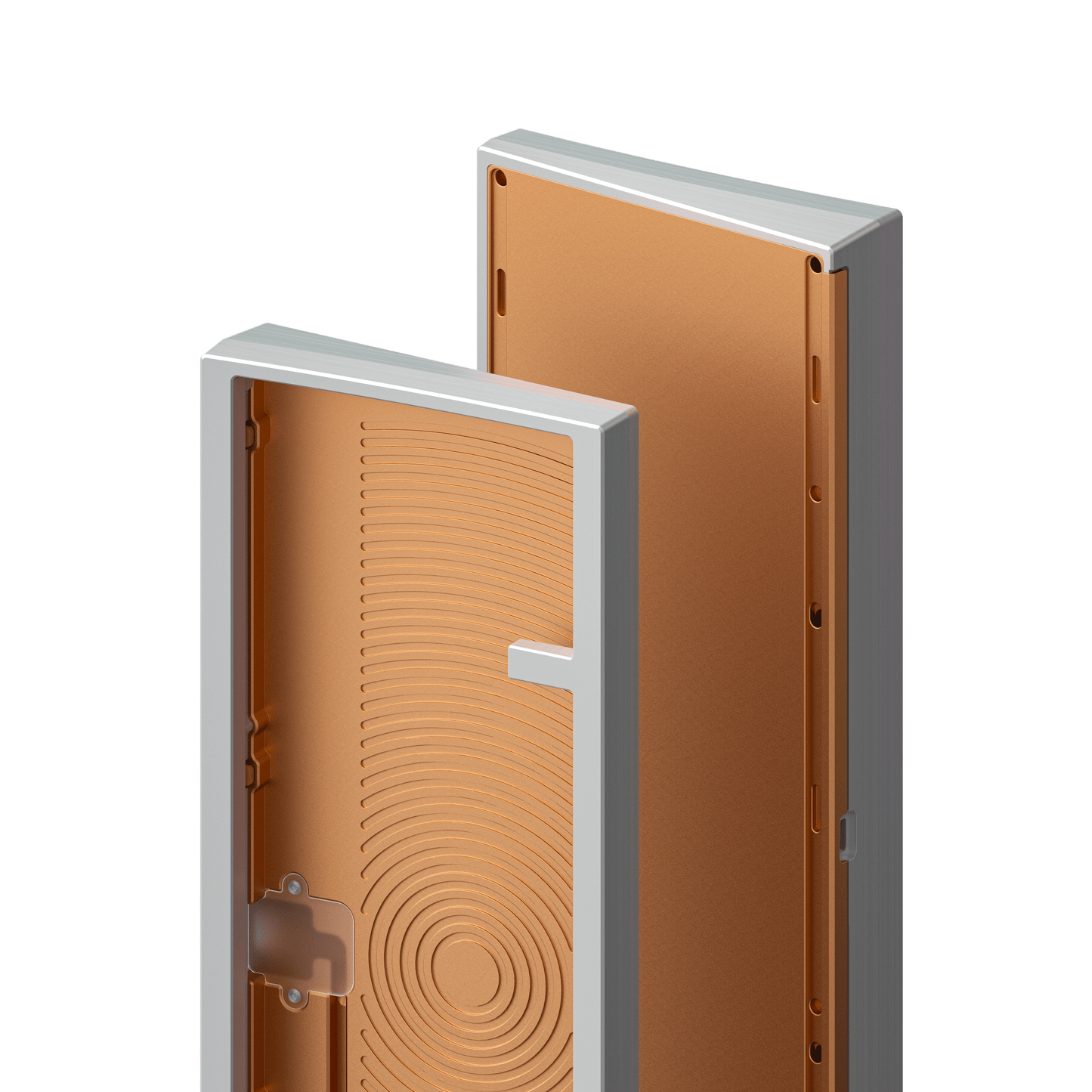

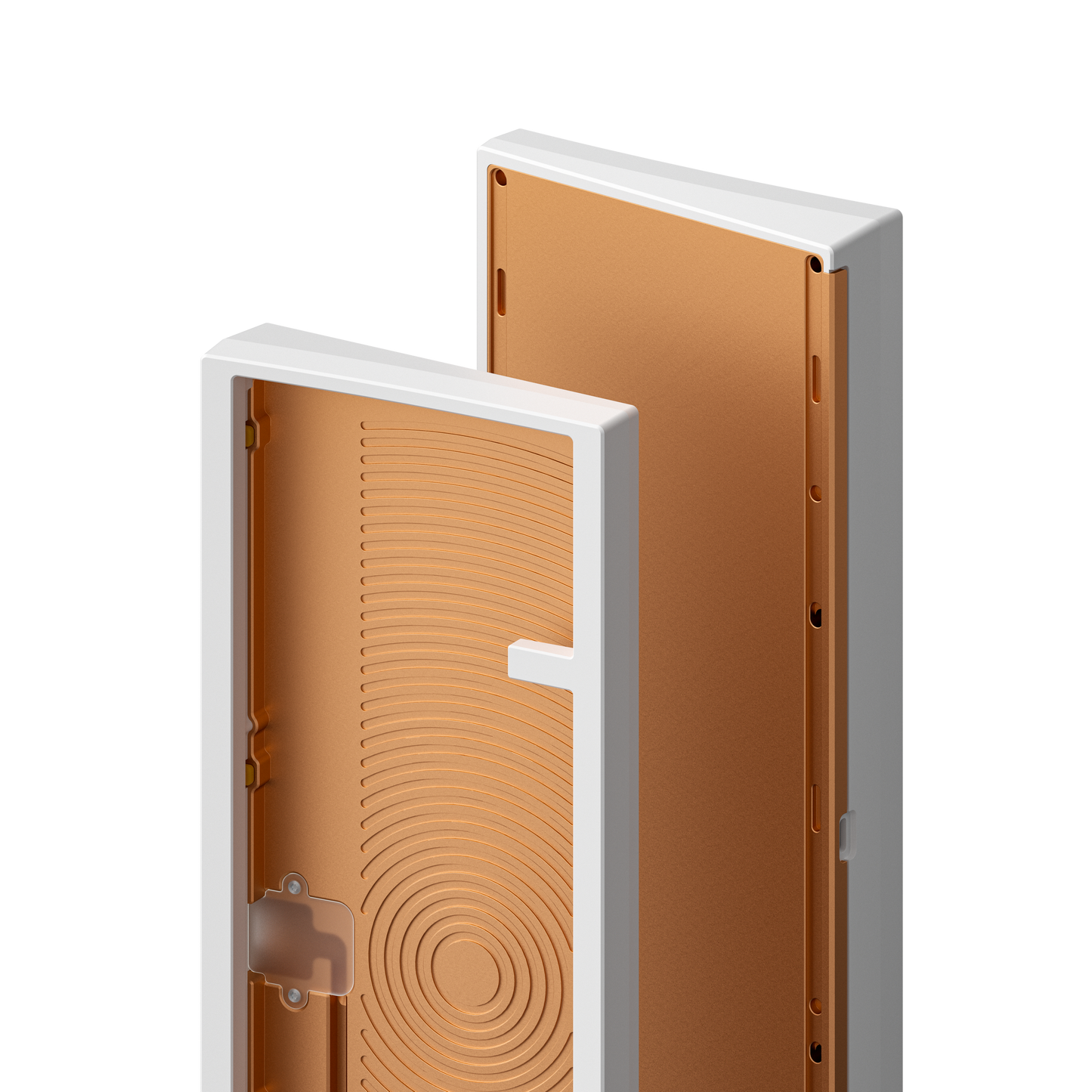

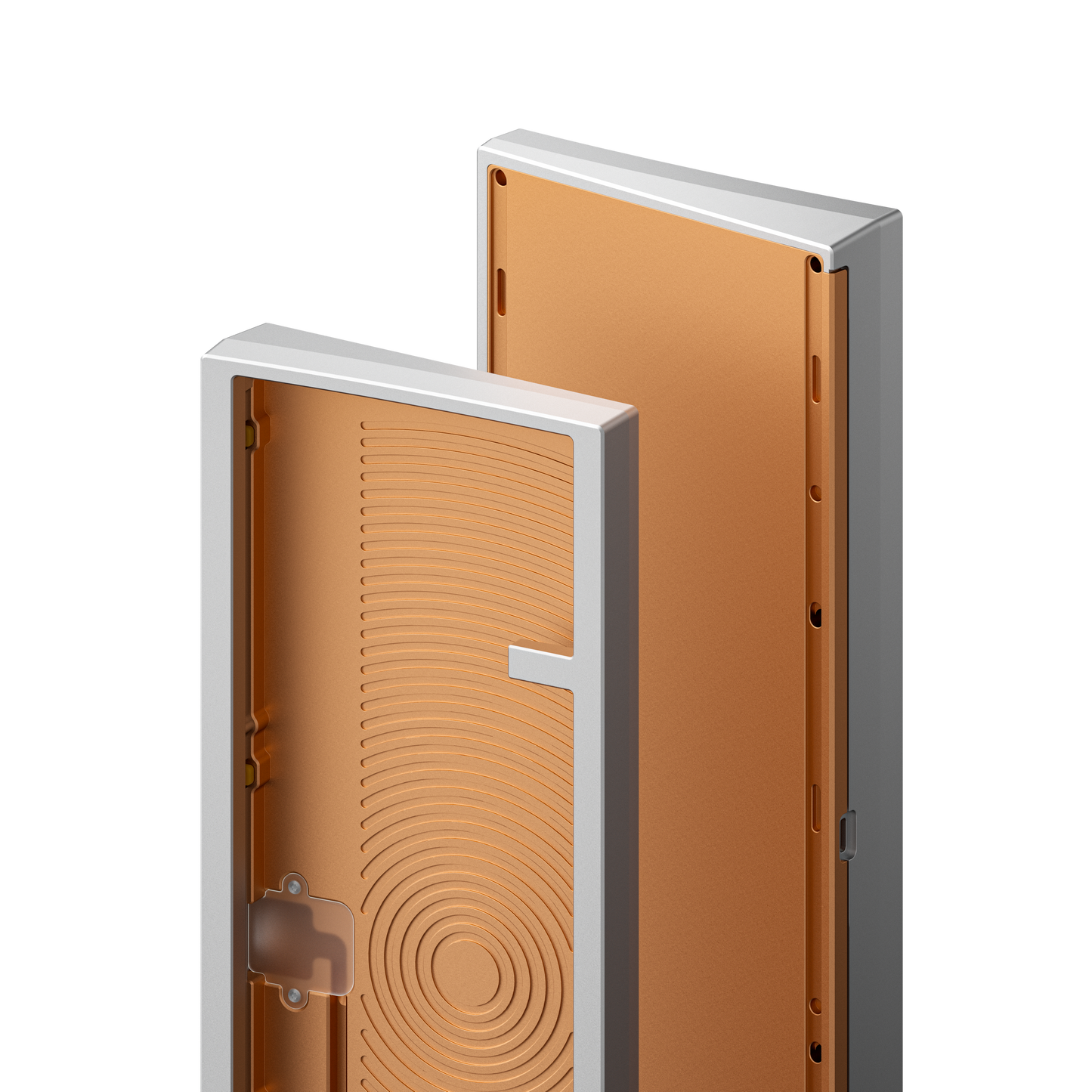

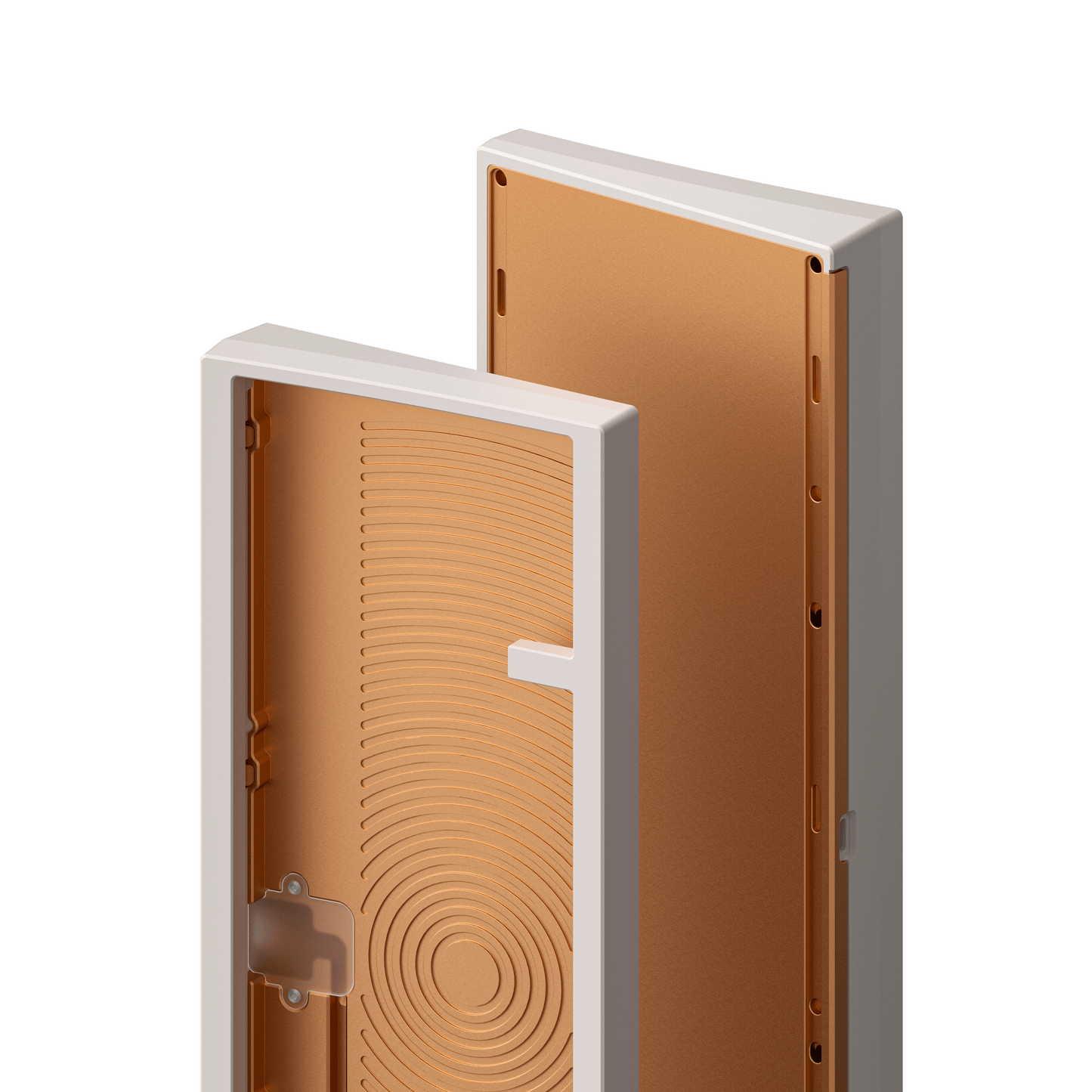

- Full Copper Bottom Case with clear E-coat finish
LAYOUT
Solder Layout
Hotswap Layout

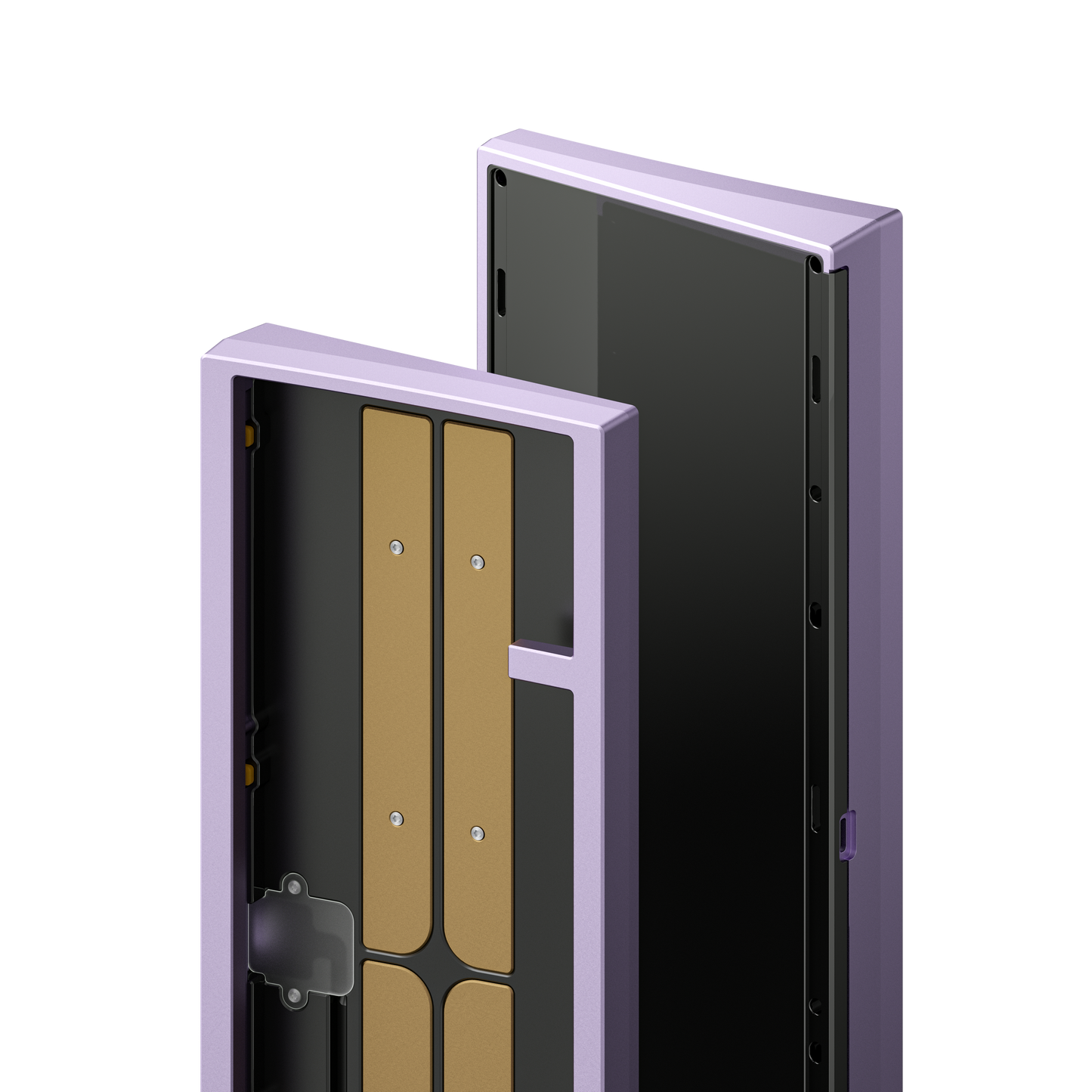

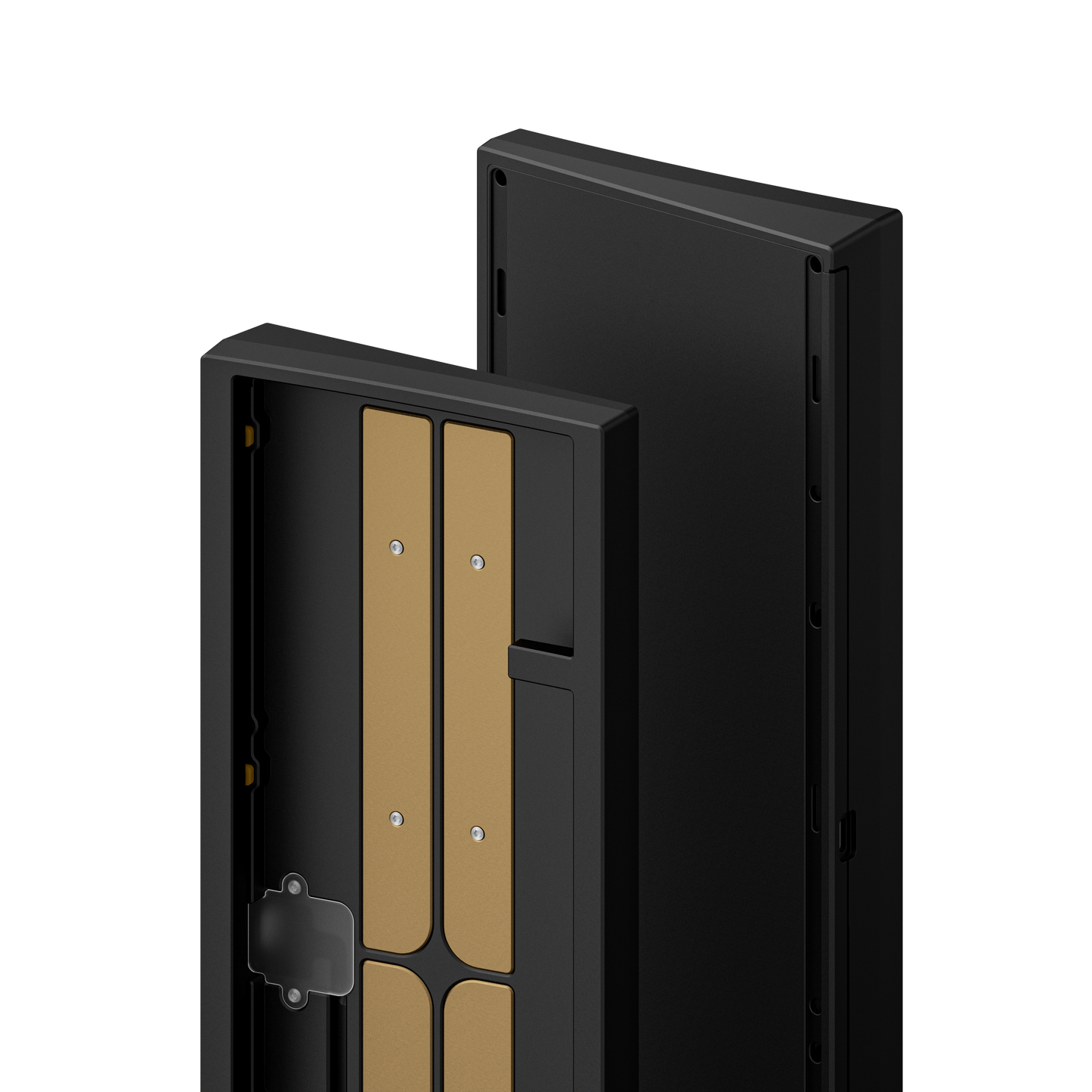

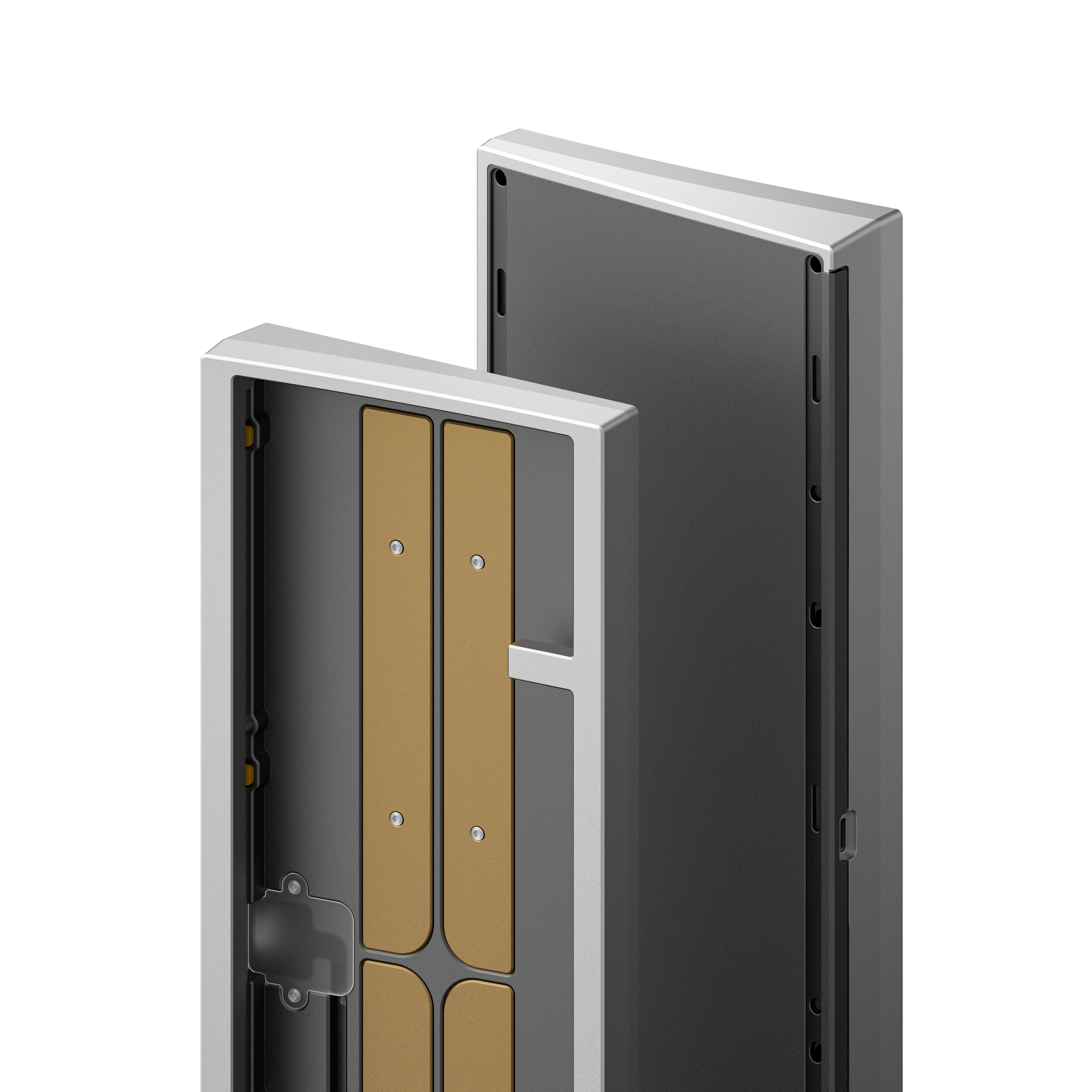

TOP CASE COLOURS
Anodised Colours
- Moonlit / Silver
- Charcoal / Black

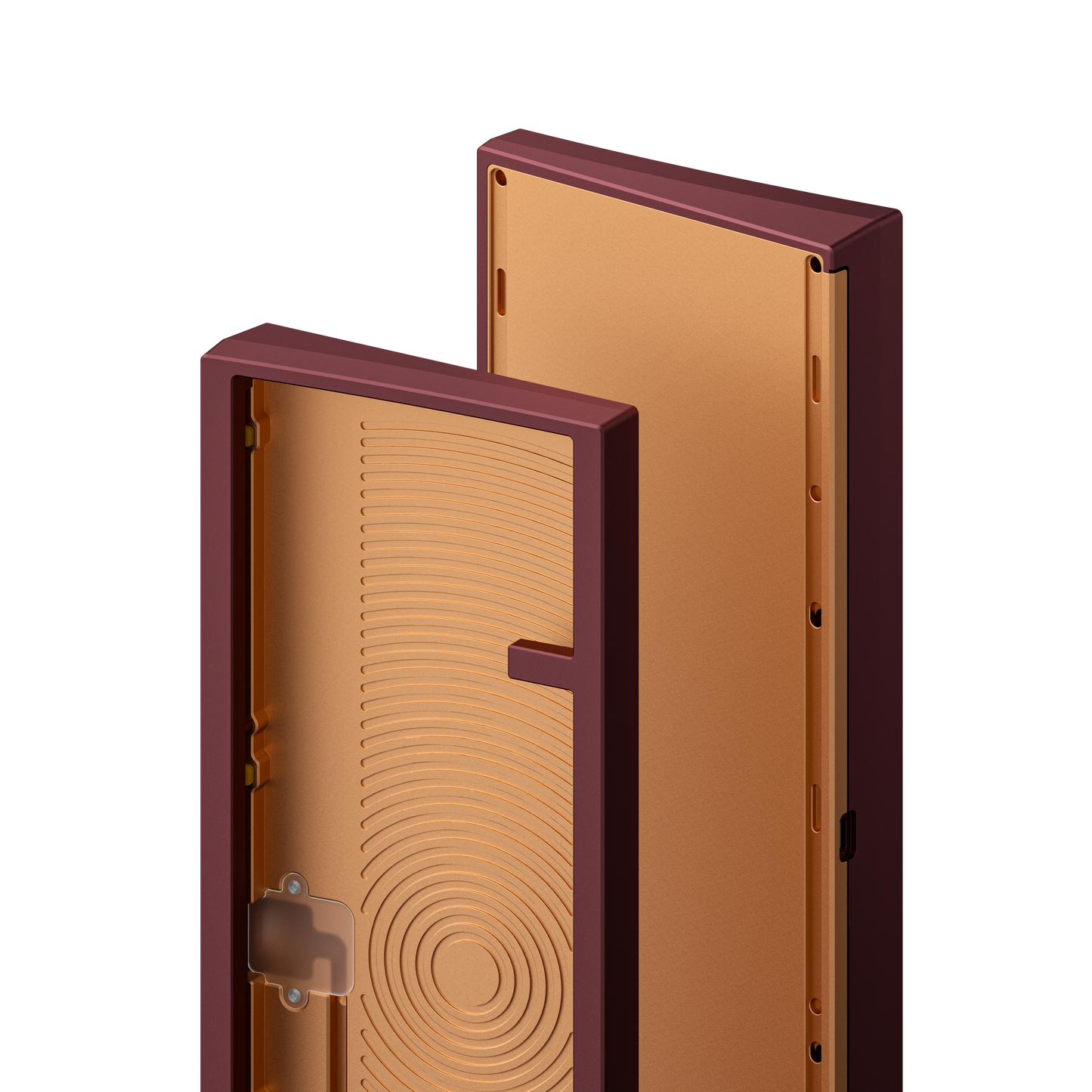

- Plum / Red
- Lavender / Purple
E-Coat Colours
- Snow / White
- Flat White / Beige
- Raw (clear E-coat)
FULFILLMENT
GB ends on 18.06.2023 or softcap is reached.
Delivery time: Q4 2023. Shipping out by air after QC

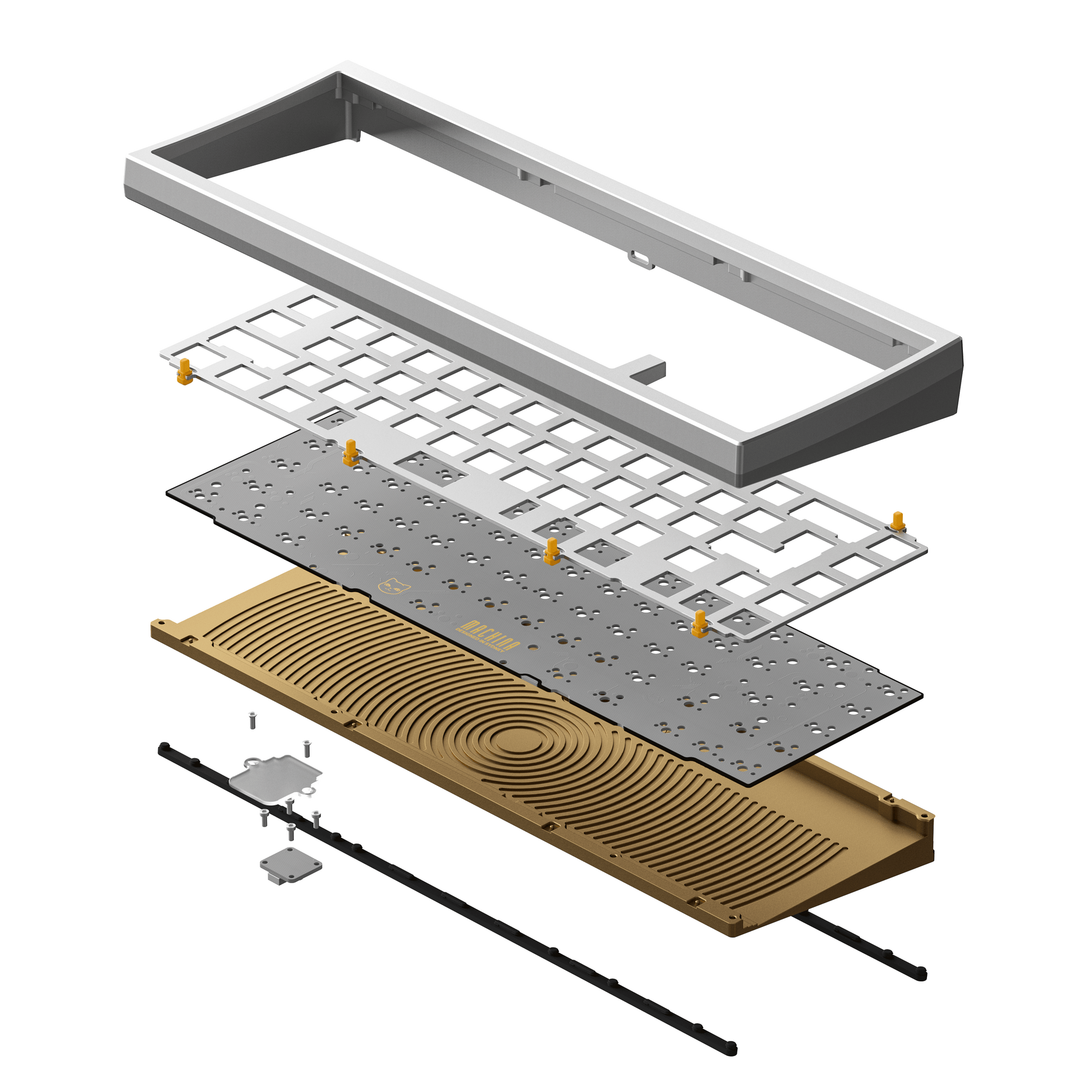

CONTENT
1 x Top Enclosure
1 x Bottom Case
1 x Full Aluminium Plate
1 x PCB
2 x 2 Custom Moulded Machina Feet (Black and Grey)
8 x Custom Moulded Machina Tadpole (70A)
12 x M2x5 Screws
4 x M2x5 Countersunk Screws (Aluminium bottom only)
4 x M2x3 Countersunk Screws (Aluminium bottom only)
2 x M2x5 Countersunk Screws
1 x PC Daughterboard Cover
1 x Daughterboard with JST Connection Cable
1 x Compatible Screwdriver
1 x Carry Case
* Foam is not included in the kit.

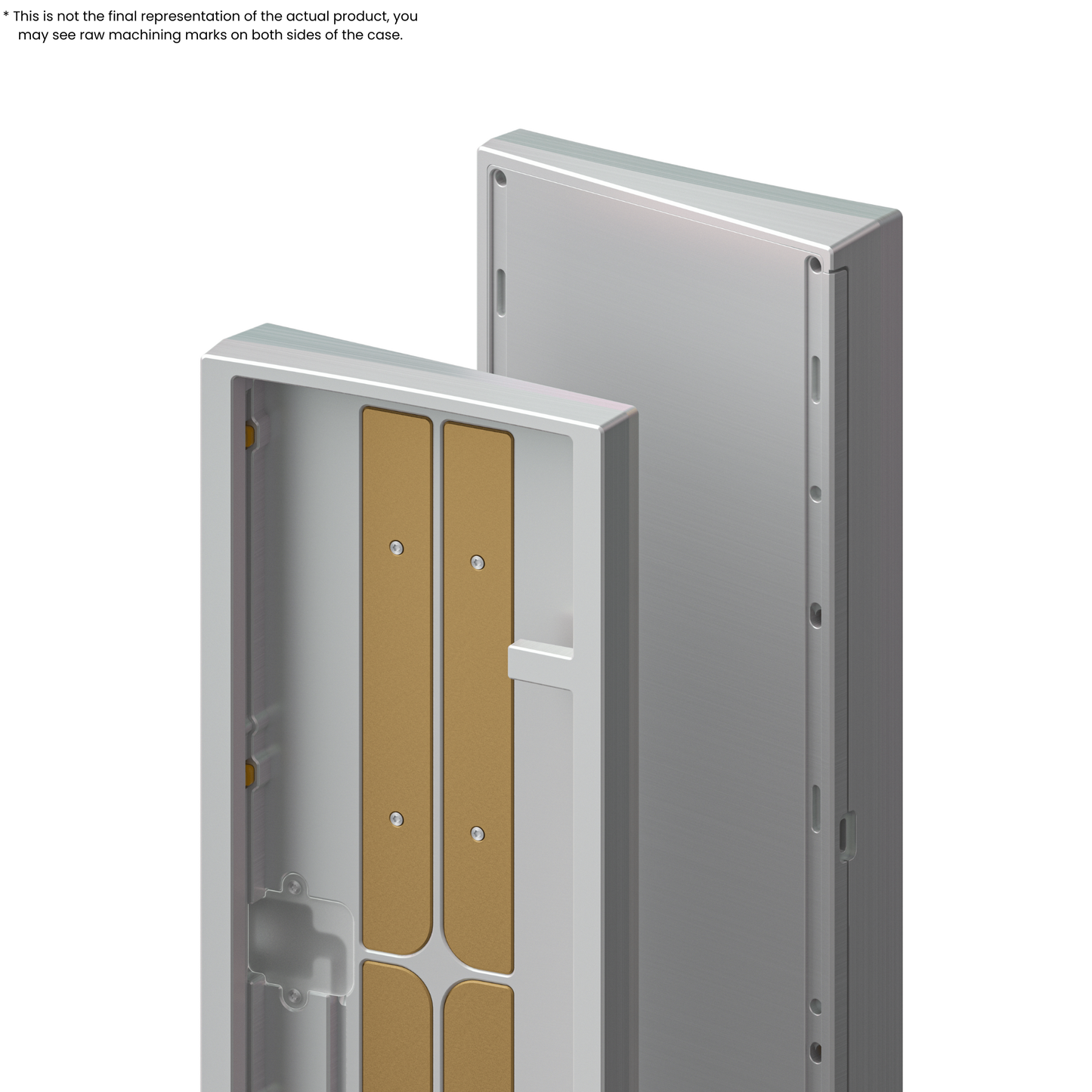

ABOUT RAW KEYBOARD
- Raw Orbit has clear E-coat, which can prevent oxidation.
- Raw products are aluminium products that have not been surface-treated and may have CNC marks and small scratches.
- You cannot get a refund or exchange due to scratches except crack or dents
- Please refer to photos here for the actual look of the raw Oribt.
Huge thanks to Markerchun for all the amazing photos!
Find more here: https://markerchun.com/orbit
